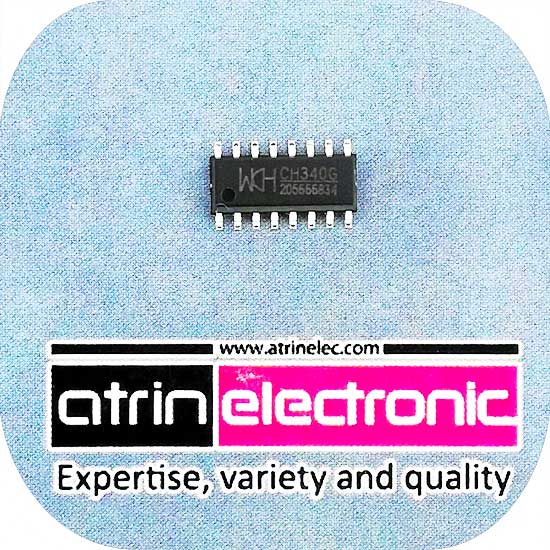

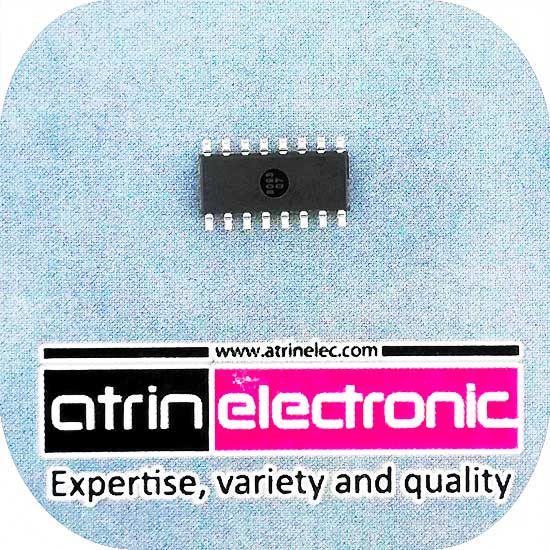

مبدل USB به UART ، یو اس بی به سریال ،پشتیبانی سرعت سریال تا 2 مگا بیت بر ثانیه،پشتیبانی از پروتکل های RS232, RS422,RS485 و ولتاژ کاری 5 و 3.3 ولت USB to UART Interface
دریافت دیتا شیت
موارد مصرف:
استفاده در انواع بردهای مبدل یو اس بی به UART
Features
Full-speed USB interface, compatible with USB 2.0 interface
Operates with a minimum amount of external components: a crystal and a minimum of four
capacitors
Provides a virtual serial port for upgrading existing serial port devices or adding serial ports
to a PC
Supports all existing applications using serial ports without the need of changing existing
code
Hardware full-duplex serial interface with internal FIFO. Baud rate range from 50bps to
2Mbps
Supports common flow control signals RTS, DTR, DCD, RI, DSR and CTS
Supports RS232, RS422 and RS485 with external level shifting components
Uses CH341 driver
Supports 5V and 3.3V operation
