ای سی لایه فیزیکی اترنت با سرعت 10/100 مگابیت بر ثانیه و از رابط اینترفیس MII پشتیبانی میکند. Mbps Fast Ethernet Physical Layer Single Chip 10/100 Transceiver
Features
Fully comply with IEEE 802.3 / IEEE 802.3u 10Base-T/ 100Base-TX, ANSI X3T12 TP-PMD 1995 standard
(Support MDI/MDI-X auto crossover function (Auto-MDI
Support Auto-Negotiation function, compliant with IEEE 802.3u
Fully integrated Physical layer transceiver On-chip filtering with direct interface to magnetic transformer
Selectable repeater or node mode
Selectable MII or RMII (Reduced MII) mode for
100Base-TX and 10Base-TX. Selectable MII or GPSI
7-Wired) mode for 10Base-T )
Selectable full-duplex or half-duplex operation
MII management interface with maskable interrupt output capability
Provide Loopback mode for easy system diagnostics
LED status outputs indicate Link/ Activity, Speed10/100 and Full-duplex/Collision. Support Dual-LED optional control
Single low power Supply of 3.3V with an advanced CMOS technology
:Very Low Power consumption modes
(Power Reduced mode (cable detection
Power Down mode
Selectable TX drivers for 1:1 or 1.25:1 transformers for additional power reduction. 1: 1 transformers only when HP Auto-MDIX Enable
Compatible with 3.3V and 5.0V tolerant I/Os

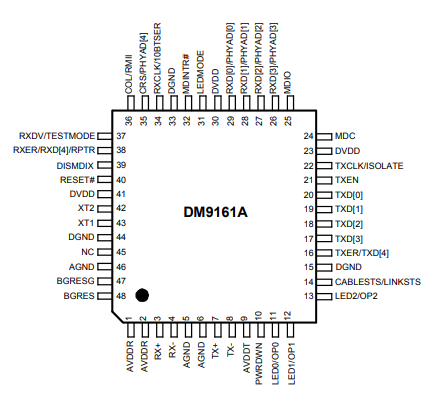

48-pin LQFP
