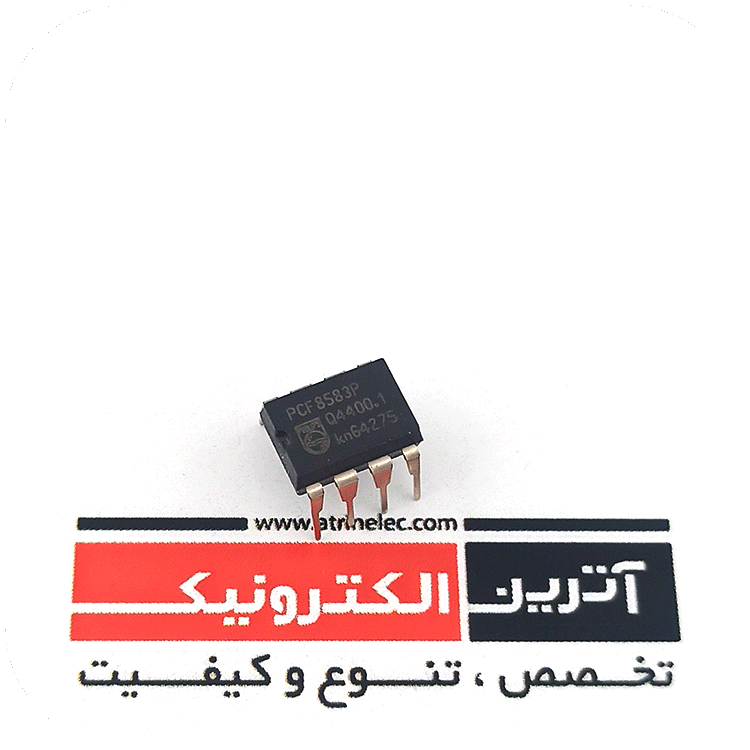

ای سی ساعت با تقویم با رابط I2C دوسیمه با قابلیت تنظیم آلارم Clock/calendar with 240 × 8-bit RAM
FEATURES
I 2C-bus interface operating supply voltage: 2.5 V to 6 V
Clock operating supply voltage (0 to +70 °C): 1.0 V to 6.0 V
240 × 8-bit low-voltage RAM
Data retention voltage: 1.0 V to 6 V
Operating current (at fSCL = 0 Hz): max. 50 µA
Clock function with four year calendar
Universal timer with alarm and overflow indication
24 or 12 hour format
32.768 kHz or 50 Hz time base
(Serial input/output bus (I2C
Automatic word address incrementing
Programmable alarm, timer and interrupt function
Slave address: – READ: A1 or A3 – WRITE: A0 or A2
