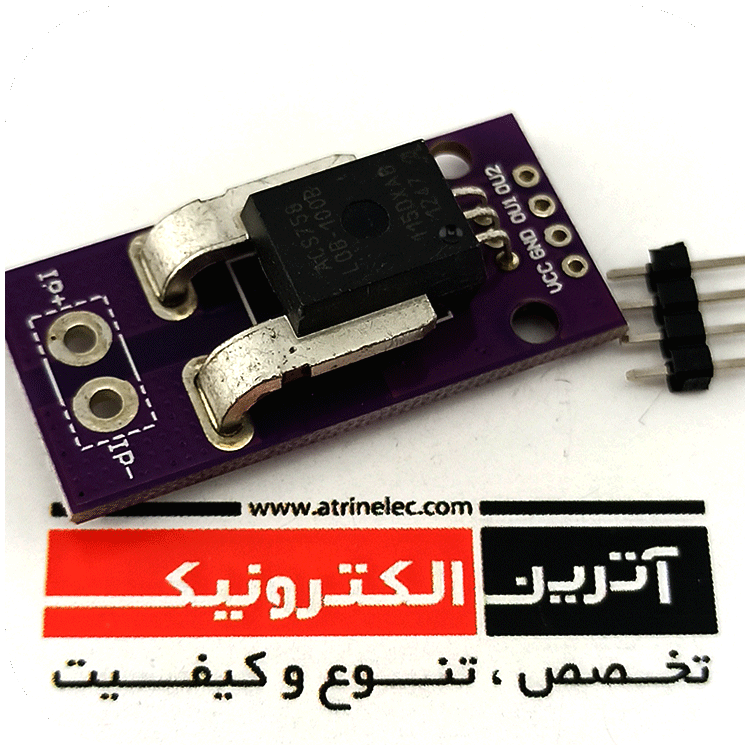

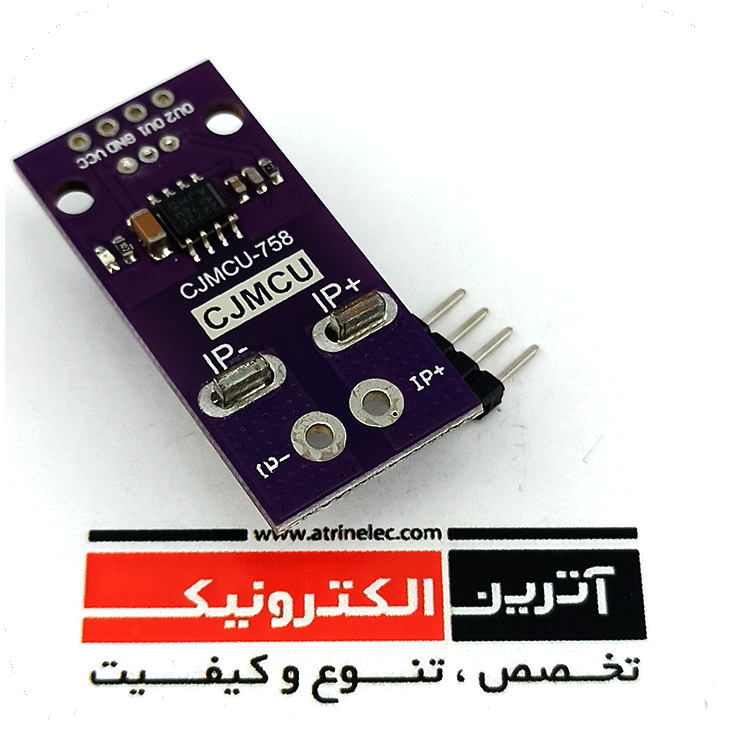

ماژولACS758 - جریان 100آمپر اورجینال

نقد و بررسی اجمالی

ماژول اندازه گیری جریان ثابت و متناوب تا رنج 100 آمپر Panel Mount +/-100Amp AC/DC Current Sensor Module

 دریافت دیتا شیت

مشخصات:

Key Features
Industry-leading noise performance
through proprietary amplifier and filter
design techniques
Integrated shield greatly reduces
capacitive coupling from current
conductor to die due to high dV/dt signals, and prevents offset drift in high-side, high voltage applications
Total output error improvement through gain and offset trim over temperature
Small package size, with easy mounting capability
Monolithic Hall IC for high reliability
Ultra-low power loss: 100 µΩ internal conductor resistance
Galvanic isolation allows use in economical, high-side current sensing in high voltage systems
3.0 to 5.5 V, single supply operation
120 kHz typical bandwidth
3 µs output rise time in response to step input current
Output voltage proportional to AC or DC currents
Factory-trimmed for accuracy
Extremely stable output offset voltage
Nearly zero magnetic hysteresis
Applications
Motor control
Load detection and management
DC-to-DC converter control
Inverter control
Power supplies, and
Overcurrent fault protection
