ایسی امپلی فایر(تقویت کننده) RF انالوگ دیوایس - RF Amplifier 50ohm, 20dB Gain Block Low Distortion IF Amplifier
FEATURES
50Ω Matched 20MHz to 1400MHz
n 20.8dB Power Gain
n 46.2dBm OIP3 at 240MHz Into 50Ω
n NF = 2.6dB at 240MHz
n 0.6nV/√Hz Total Input Noise
n S11 < –10dB Up to 2.0GHz
n S22 < –10dB Up to 1.4GHz
n >2.0VP-P Linear Output Swing
n P1dB = 22.0dBm
n 50Ω Single-Ended Input/Output
n Insensitive to VCC Variation
n A-Grade 100% OIP3 Tested at 240MHz
n Input/Output Internally Matched to 50Ω
n Single 5V Supply
APPLICATIONS

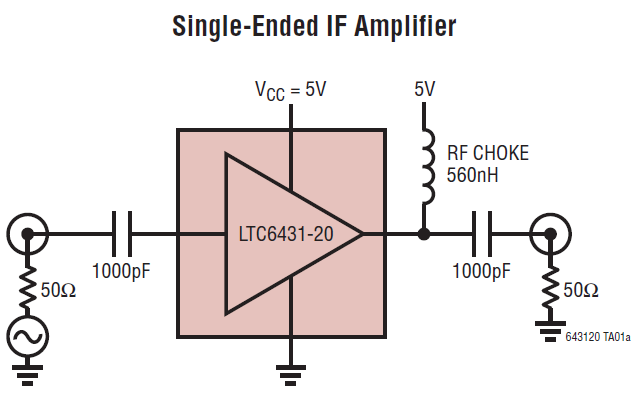

n Single-Ended IF Amplifier
n ADC Driver
n CATV
| Product Attribute | Attribute Value |
|---|---|
| Analog Devices Inc. | |
| RF Amplifier | |
| RoHS: | Details |
| SMD/SMT | |
| QFN-24 | |
| Gain Block Amplifiers | |
| SiGe | |
| 20 MHz to 1.4 GHz | |
| 22 dBm | |
| 20.8 dB | |
| 5 V | |
| 2.6 dB | |
| 46.2 dBm | |
| 93 mA | |
| - 40 C | |
| + 85 C | |
| LTC6431-20 | |
| Tube | |
| Brand: | Analog Devices |
| Number of Channels: | 1 Channel |
| Product Type: | RF Amplifier |
| 91 | |
| Subcategory: | Wireless & RF Integrated Circuits |
| Test Frequency: | 240 MHz |
| Unit Weight: | 0.000882 oz |
