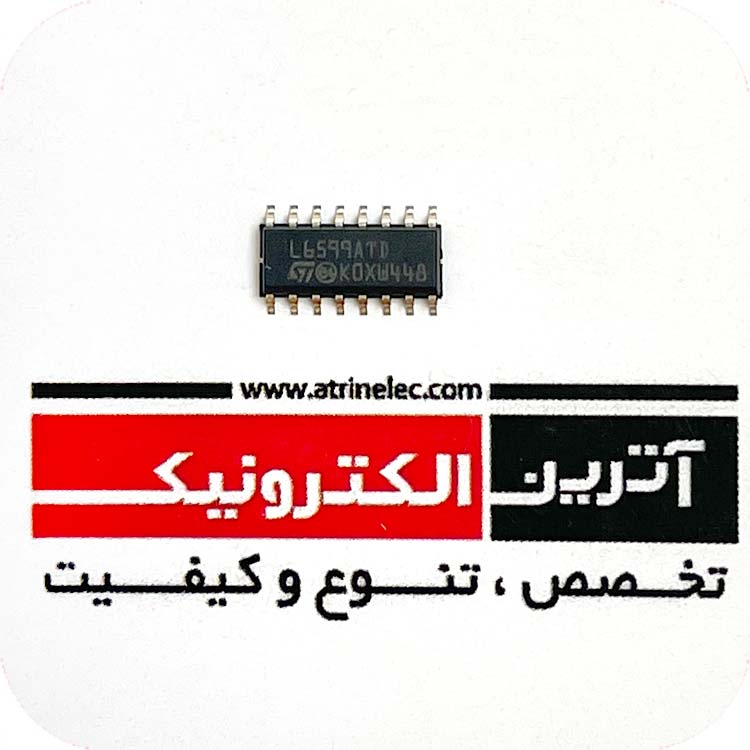

Power Management Specialized - PMIC IMPROVED High-Volt RESONANT CONTROLLER, SO-16N آیسی کنترل و بهبود کننده رزونانس ولتاژ بالا
استفاده در :
نمایشگر های LCD
لب تاپ ها
مخابراتی
اداپتورهای AC-DC
Applications
LCD and PDP TV
Desktop PC, entry-level server
Telecom SMPS
High efficiency industrial SMPS
AC-DC adapter, open frame SMPS
Features
50% duty cycle, variable frequency control of
resonant half bridge
High accuracy oscillator
Up to 500 kHz operating frequency
Two-level OCP: frequency-shift and latched
shutdown
Interface with PFC controller
Latched disable input
Burst mode operation at light load
Input for power-ON/OFF sequencing or
brownout protection
Non-linear soft-start for monotonic output
voltage rise
600 V - rail compatible high-side gate driver
with integrated bootstrap diode and high dv/dt
immunity
-300/700 mA high-side and low-side gate
drivers with UVLO pull-down
Guaranteed for extreme temperature ranges
