منبع تغذیه DC به DC خروجی 1.8 تا 32 ولت 0 تا 5 امپر مدل DC580 کیفیت بالا - کاربردی و پر امکانات

نقد و بررسی اجمالی

دارای خروجی ثابت1.8 تا 32 و جریان 0 تا 5 آمپر-خروجی 80 وات-نمایشگر رنگی 1.44 اینچی -قابلیت کنترل از طریق کامپیوتر- خروجی پایدار-کنترل هوشمند دما -دقت ولتاژ 1 میلی ولت و جریان 1 میلی آمپر

ویژگی ها :

DC DC Buck Boost Converter CC CV 1.8-32V 5A Power Module Adjustable Regulated laboratory power supply variable

Feature:

1. Adopting 1.44‑inch LCD high‑definition display, one screen displays a variety of data, the page is simple and rich.

2. The screen supports four‑way rotation to meet the slotting installation in different orientations, and can obtain an good viewing angle.

3. Intelligent temperature control system, when the product temperature is greater than 45℃ or the output current is greater than 1A, the fan will automatically start, otherwise it will automatically shut down.

4. Using high‑quality materials, strong and durable, has a long service life

5. Made of high‑quality materials, flame‑retardant, corrosion‑resistant and wear‑resistant.

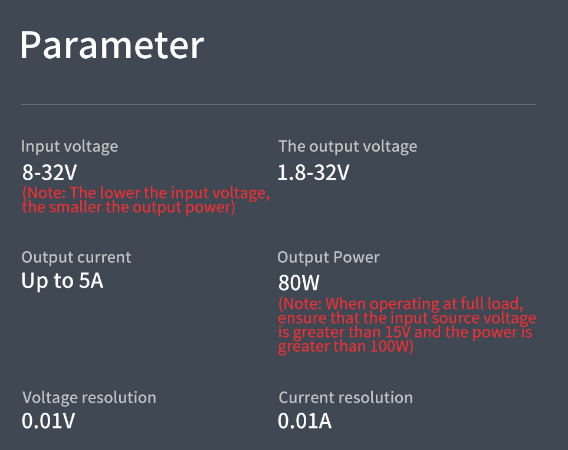

Specification:

Item Type: Power Supply Module

Product Material: ABS

Input Voltage: 8-32V

Output Voltage: 1.8-32V

Output Current: Up to 5A

Output Power: 80W

Voltage Resolution: 0.01V

Current Resolution: 0.001A

Size: Approx. 3.7cm / 1.44in

Description:

DC-580 digital controlled buck-boost adjustable power supply is small in size, powerful in function, stable in performance, high in accuracy, and contains a variety of humanized system settings. Adopting 1.44-inch LCD high-definition display, one screen displays a variety of data, the page is simple and rich.

Package List

1 x FNIRSI DC580

1 x PC Software Serial port module
