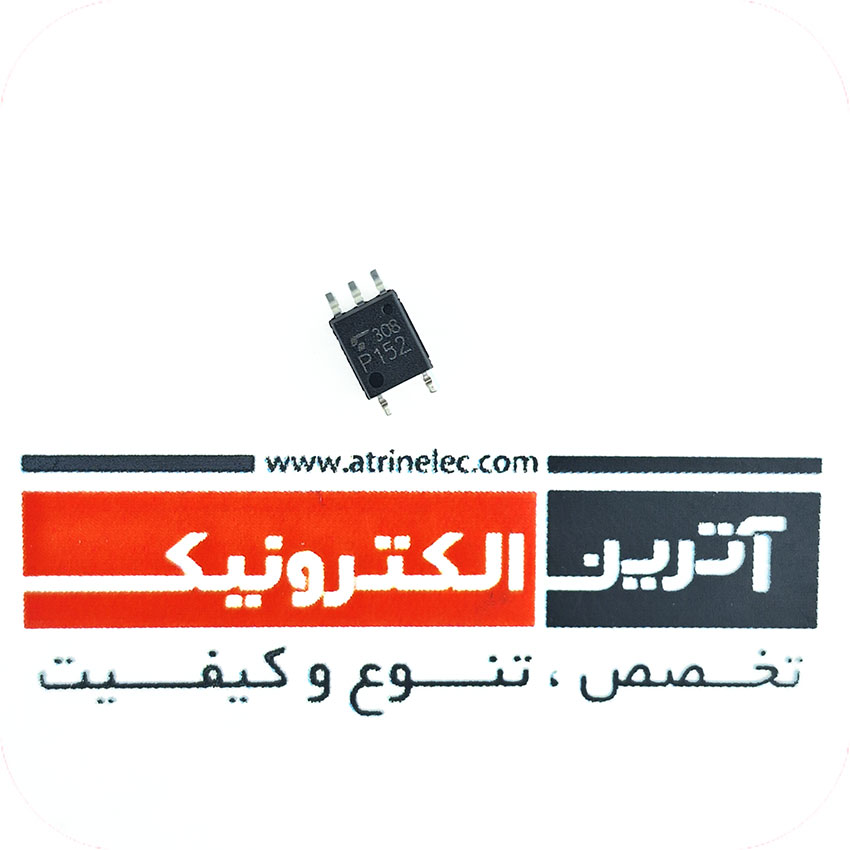

گیت درایور ایزوله 2.5 آمپر پیک Photocouplers GaA As Infrared LED & Photo IC 2.5Amp Output Current IGBT Gate Drive Optocoupler SO6-5
استفاده در انواع نمایشگرهای پلاسما
اینورترهای صنعتی
گیت درایور ماسفت ها و ای جی بی تی ها
1. Applications
• Plasma Display Panels (PDPs)
• Industrial Inverters
• MOSFET Gate Drivers
• IGBT Gate Drivers
2. General
The TLP152 is a photocoupler in an SO6 package that consists of a GaAℓAs infrared light-emitting diode (LED)
optically coupled to an integrated high-gain, high-speed photodetector IC chip. The photodetector IC chip has an
internal shield to provide a high common-mode transient immunity of ±20 kV/μs and thus superior noise immunity
between the input and output pins. The TLP152 has a totem-pole output that can both sink and source current.
It is suitable for directly driving a small IGBT or power MOSFET.
3. Features
(1) Buffer logic type (totem pole output)
(2) Output peak current: ±2.5 A (max)
(3) Operating temperature: -40 to 100
(4) Supply current: 3.0 mA (max)
(5) Supply voltage: 10 to 30 V
(6) Threshold input current: 7.5 mA (max)
(7) Propagation delay time: tpHL = 190 ns (max), tpLH = 170 ns (max)
(8) Common-mode transient immunity: ±20 kV/μs (min)
(9) Isolation voltage: 3750 Vrms (min)
(10) Safety standards
