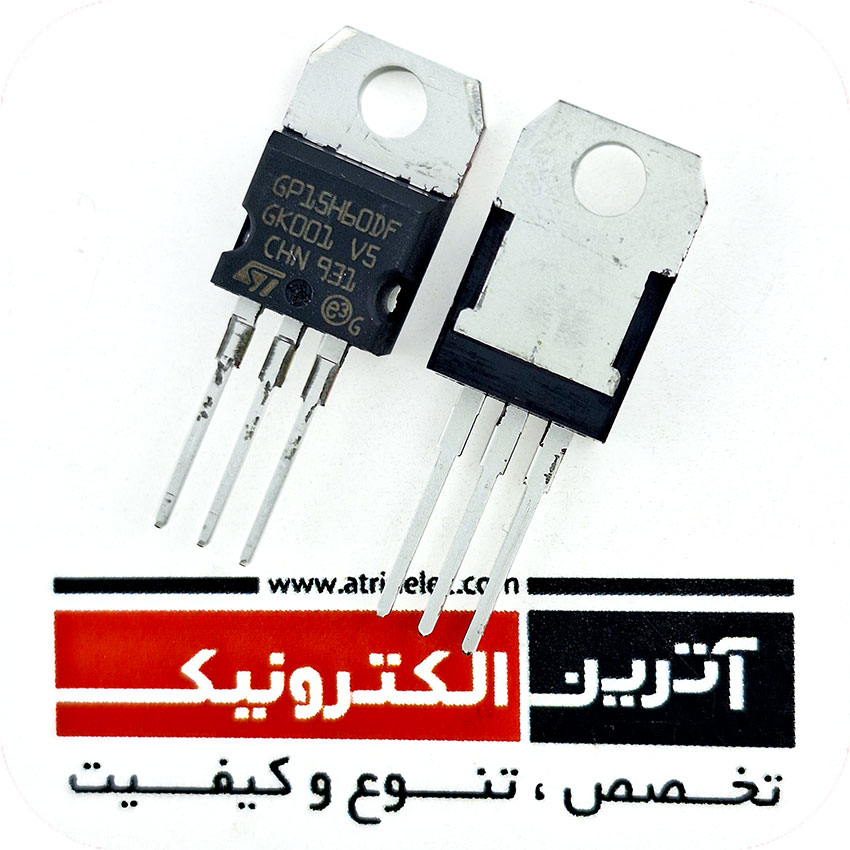

IGBT Trench Field Stop 600V 30A 115 W Through Hole TO-220 ای جی بی تی 600 ولت 30 آمپر (دمای پایین) 115 وات
استفاده در سوییچ های سریع
موتور
یو پی اس
دستگاه جوش
Features
• High speed switching
• Tight parameters distribution
• Safe paralleling
• Low thermal resistance
• Short-circuit rated
• Ultrafast soft recovery antiparallel diode
Applications
• Motor control
• UPS
• PFC
Description
These devices are IGBTs developed using an advanced proprietary trench gate fieldstop
structure. These devices are part of the H series of IGBTs, which represents an
optimum compromise between conduction and switching losses to maximize the
efficiency of high switching frequency converters. Furthermore, a slightly positive
VCE(sat) temperature coefficient and very tight parameter distribution result in safer
paralleling operation
|
Category
|
Input Type
Standard
|
|
Manufacturer
STMicroelectronics
|
Gate Charge
81 nC
|
|
Packaging
Tube
|
Td (on/off) @ 25°C
24.5ns/118ns
|
|
Part Status
Active
|
Test Condition
400V, 15A, 10Ohm, 15V
|
|
IGBT Type
Trench Field Stop
|
Reverse Recovery Time (trr)
103 ns
|
|
Voltage - Collector Emitter Breakdown (Max)
600 V
|
Operating Temperature
-55°C ~ 175°C (TJ)
|
|
Current - Collector (Ic) (Max)
30 A
|
Mounting Type
Through Hole
|
|
Current - Collector Pulsed (Icm)
60 A
|
Package / Case
TO-220-3
|
|
Vce(on) (Max) @ Vge, Ic
2V @ 15V, 15A
|
Supplier Device Package
TO-220
|
|
Power - Max
115 W
|
Base Product Number
|
|
Switching Energy
136µJ (on), 207µJ (off)
|
