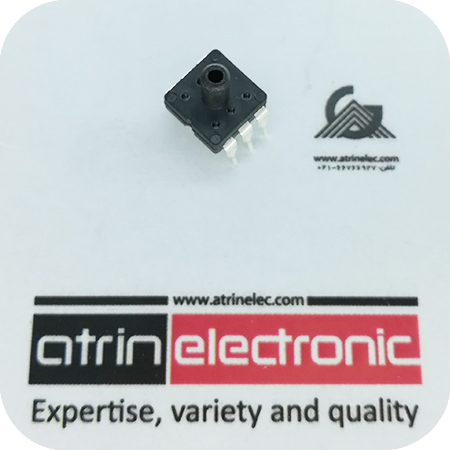

سنسور فشار MPS20N0040D محدوده اندازه گیری 8-0.5 PSI دارای خروجی انالوگ
Measuring medium: air
Measuring range: 0-40kPa
℃ Operating temperature range: -40 ℃ ~ + 125
℃ Storage Temperature: -40 ℃ ~ + 150
Humidity: (50% ± 10%) RH
℃(Ambient temperature: (25 ± 1
℃( Medium temperature: (25 ± 1
Output impedance: 4kΩ ~ 6kΩ
Zero output: -15mV~+15mV
Hysteresis: +-0.7%F.S
Power supply: ≤10V DC or ≤2.0mA DC
Insulation resistance: 100MΩ, 100VDC
:Product Features
Solid, MEMS technology, high reliability Low cost Wide monitoring and control media The application of a wide temperature range Easy to use, choose from a variety of range. Easy to use, easy to install in OEM equipment Application areas: Automotive: tire pressure, car air pump, MAP sensor, diagnostic equipment, automotive sensors. Industry: Air brake switch, portable pressure gauge, such as digital pressure gauge, environmental monitoring, consumer and sports Health care: patient monitoring and diagnostic equipment, such as blood pressure monitors, medical instrumentation and monitoring Range: 40kpa (differential pressure) Output: mV signal Electricity supply: 5VDC or constant current 1Ma Linear accuracy: 0.25% FS Measure the pressure range of 580 PSIG, 40KPaG Max pressure capacity of three times the measuring range Work power supply 5 VDC, Input impedance of 4 - 6 KΩ The output impedance of 4 - 6 KΩ Operating temperature -40 - 85 ° C -40 ° F - +185 ° F Storage Temperature -40 - 125 ° C -40 ° the F - +257 ° F Accessible media, clean, dry, non-corrosive gases Bias voltage ± 25 mV Full-scale output voltage 50 - 100 mV Bridge Resistance to 4 - 6 KΩ Linearity ± 0.3% F.S. Hysteresis ± 0.7% F.S. Bias Temperature coefficient ± 0.08% of F.S. / °c Temperature coefficient of sensitivity -0.21 % FS/ °c
