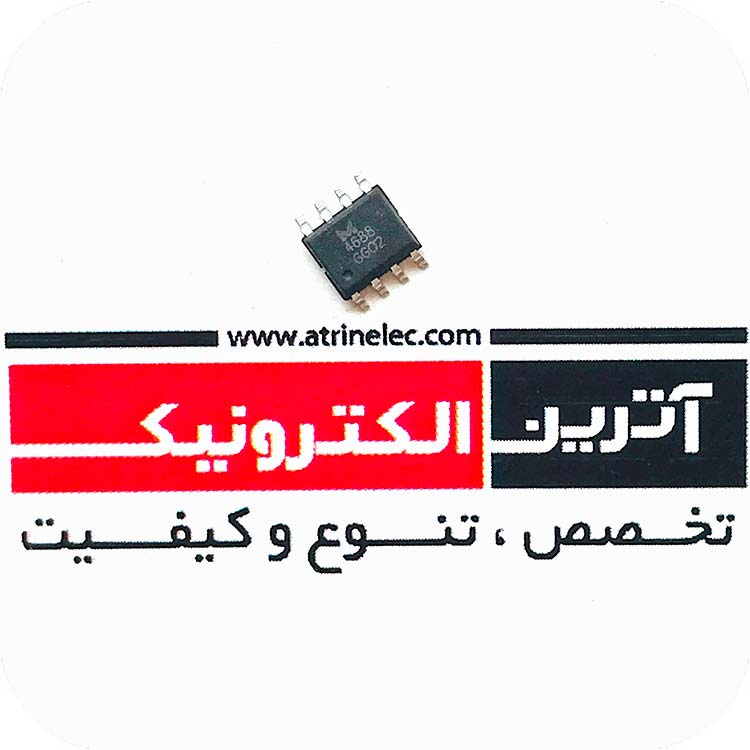

N and P-Channel Enhancement Mode Power MOSFET 60V,6A SOP-8 ماسفت(آیسی) 2 ترانزیستوری P و N ولتاژ 60 ولت 6 آمپر
استفاده در انواع دستگاه جوش های اینورتری و مدارات الکترونیکی
آیسی ماسفت دوبل

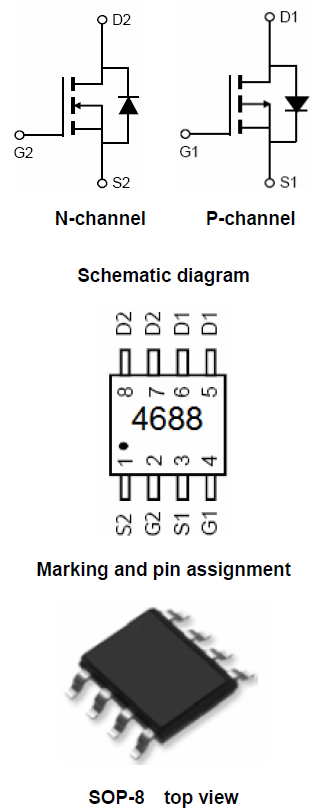

Description
The NCE4688 uses advanced trench technology to provide
excellent RDS(ON) and low gate charge . The complementary
MOSFETs may be used to form a level shifted high side
switch, and for a host of other applications.
General Features
● N-Channel
VDS = 60V,ID =6.3A
RDS(ON) < 30mΩ @ VGS=10V
● P-Channel
VDS = -60V,ID = -6A
RDS(ON) < 80mΩ @ VGS=-10V
● High power and current handing capability
● Lead free product is acquired
● Surface mount package
