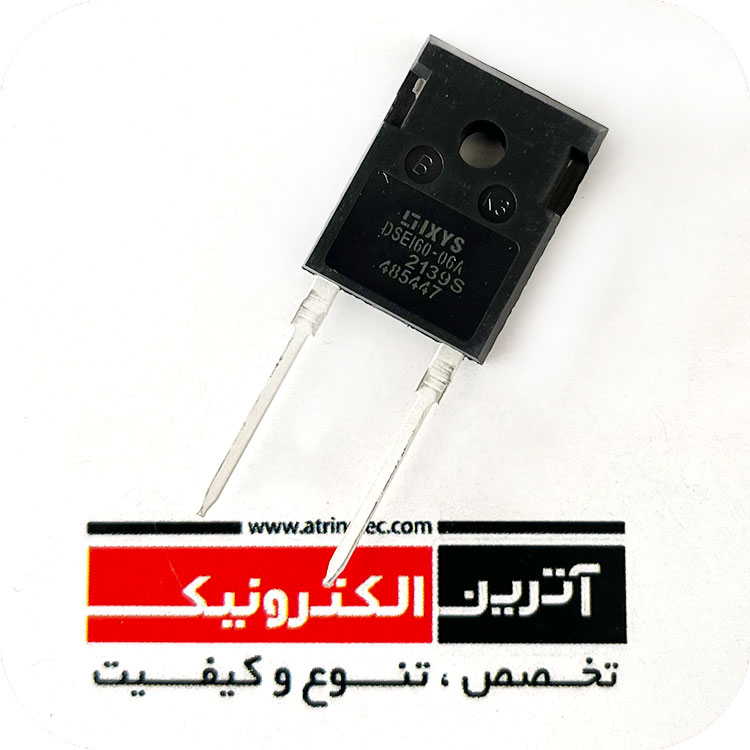

دیود فست 600 ولت 60 آمپر 35 نانو ثانیه 60A,600V TO-247 ,Fast Recovery Epitaxial Diode trr = 35ns
استفاده در انواع دستگاه جوش های اینورتری - سوئیچینگ ها - اینورترهای دور و انواع منابع تغذیه و مصارف عمومی الکترونیک و صنعتی
اطلاعات بیشتر:
Features / Advantages: Applications: Package:
● Planar passivated chips
● Low leakage current
● Very short recovery time
● Improved thermal behaviour
● Very low Irm-values
● Very soft recovery behaviour
● Avalanche voltage rated for reliable operation
● Soft reverse recovery for low EMI/RFI
● Low Irm reduces:
- Power dissipation within the diode
- Turn-on loss in the commutating switch
● Antiparallel diode for high frequency
switching devices
● Antisaturation diode
● Snubber diode
● Free wheeling diode
● Rectifiers in switch mode power
supplies (SMPS)
● Uninterruptible power supplies (UPS)
TO-247
● Industry standard outline
● RoHS compliant
● Epoxy meets UL 94V-0
Information furnished is believed to be accurate and reliable. However, users should independently
evaluate the suitability of and test each product selected for their own applications. Littelfuse products are not designed for,
and may not be used in, all applications. Read complete Disclaimer Notice at
Disclaimer Notice
ویژگی |
مقادیر |
خانواده |
دیود |
سری دیود |
فست |
تعداد پین | |
پکیج |
TO-247 |
ولتاژکاری |
600V |
جریان کاری |
60A |
توان |
- |
VZ |
- |
VRRM | 600V |
VRMS |
600V |
VDC |
- |
VF |
- |
(IF(AV)-I(AV |
60A |
IFRM |
- |
IFSM |
- |
(IR(25°C |
- |
(IR(HIGH TEMP |
- |
CJ |
- |
Trr |
35ns |
ابعاد |
- |
دمای کاری |
175+~55- |
برند |
IXYS |
کشور سازنده |
آلمان |
کیفیت |
اورجینال |
نوع مونتاژ |
DIP |
ویژگی خاص |
- |
