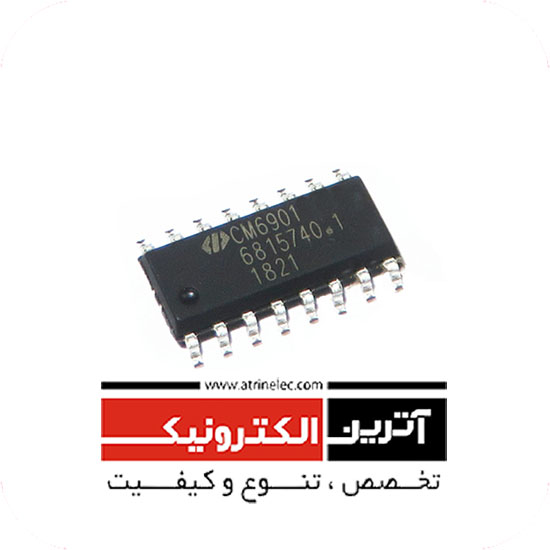

آیسی کنترل رزونانس و pwm SLS (SRC/LLC+SR) Controller with 1 FM+2 PWMs SOP-16
ویژگی ها:
DC-DC Power Supply.
منابع تغذیه DC به DC
CM6901XIS* -40℃ to 125℃ 16-Pin SOP (S16)
CM6901XISTR* -40℃ to 125℃ 16-Pin SOP (S16)
CM6901XIP* -40℃ to 125℃ 16-Pin PDIP (P16)
FEATURES
90+ Controller
Smaller and Thinner Transformer
20ms with reasonable Bulk Cap(hold up time)
SLS, SRC/LLC + SR resonant controller
2 Gate Drivers: Typical Peak Drive from 12V
supply : (PMOS~200 ohm and NMOS~100 ohm).
UVLO =11V with 1V Hysteresis.
Reference OK Comparator.
FM + 2 PWMING Mode Operation
Light Load PWMING (light load regulation)
SR Ideal Diode PWMING(cross resonant frequency
application )
GM FEAO, FM modulation Error Amplifier
GM DEAO, PWM Error Amplifier
Soft start Capability with Shutdown Function.
Auto-Restart during Current LIMIT.
Precision 2.5V VFB threshold for constant voltage
feedback loop.
Precision 1V I limit threshold (ILIM).
Patented
