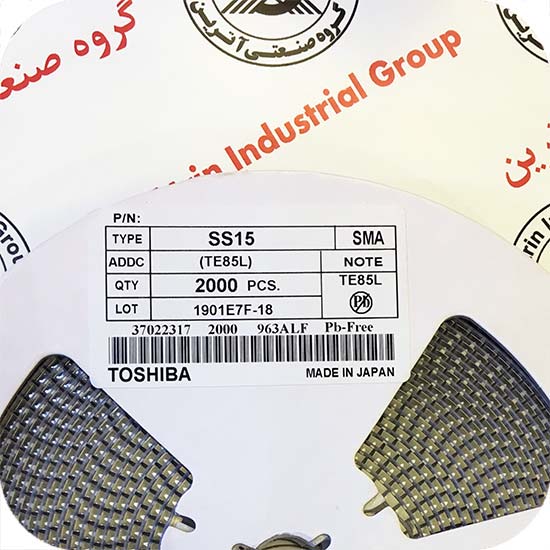

Schottky Rectifier, 50 V, 1 A, Single,SMD, DO-214AC دیودشاتکی 50 ولت 1 آمپر اس ام دی
FEATURES
• Low profile package
• Ideal for automated placement
• Guardring for overvoltage protection
• Low power losses, high efficiency
• Low forward voltage drop
• High surge capability
• Meets MSL level 1, per J-STD-020, LF maximum peak
of 260 °C
• AEC-Q101 qualified available
- Automotive ordering code: base P/NHE3 or P/NHM3
• Material categorization: for definitions of compliance
please see www.vishay.com/doc?99912
TYPICAL APPLICATIONS
For use in low voltage, high frequency inverters,
freewheeling, DC/DC converters, and polarity protection
applications.
ویژگی |
مقادیر |
خانواده |
دیود |
سری دیود |
شاتکی |
تعداد پین | 2 |
پکیج |
DO-214AC |
ولتاژکاری |
50V |
جریان کاری |
1A |
توان |
- |
VZ |
- |
VRRM | 50V |
VRMS |
35V |
VDC |
- |
VF |
- |
(IF(AV)-I(AV |
1A |
IFRM |
- |
IFSM |
40Amps |
(IR(25°C |
0.2mA |
(IR(HIGH TEMP |
5mA |
CJ |
- |
Trr |
- |
ابعاد |
4.50x2.79x1.68mm |
دمای کاری |
150+~65- |
برند |
vishay |
کشور سازنده |
- |
کیفیت |
ارجینال |
نوع مونتاژ |
DIP |
ویژگی خاص |
- |
