نقد و بررسی اجمالی

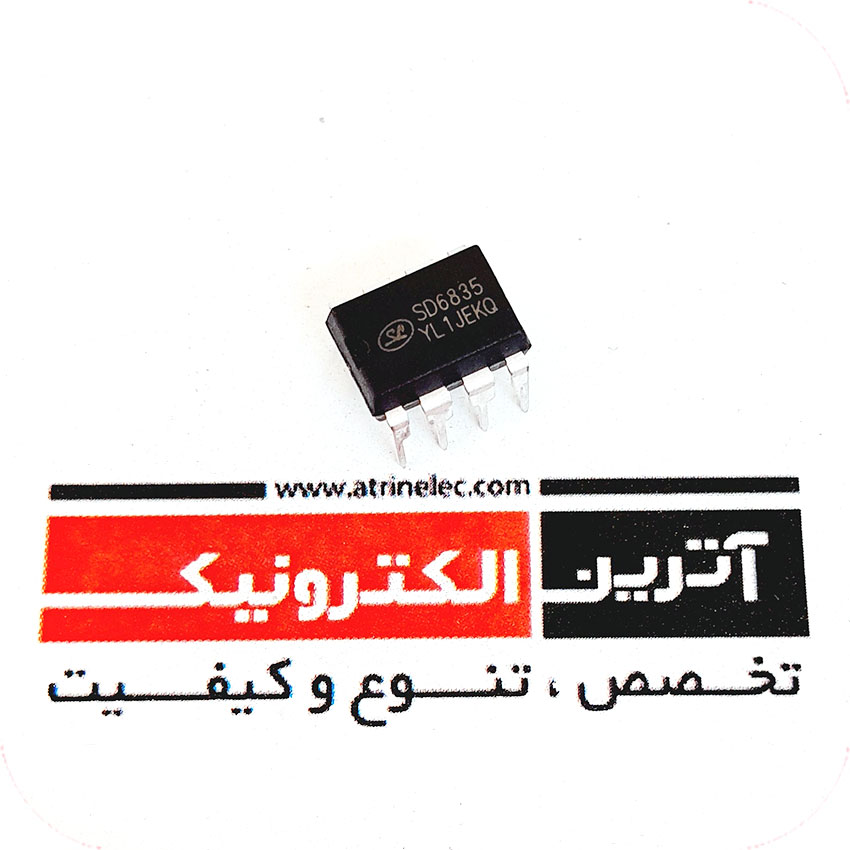

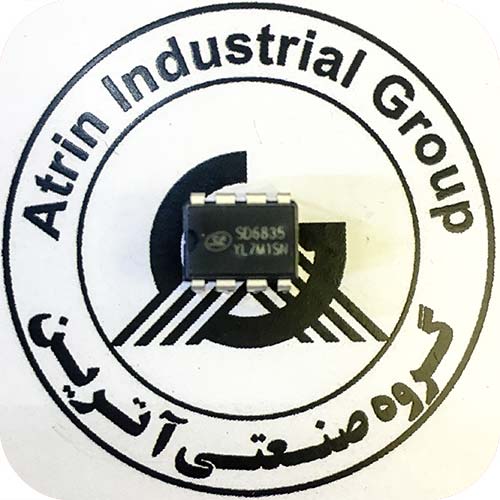

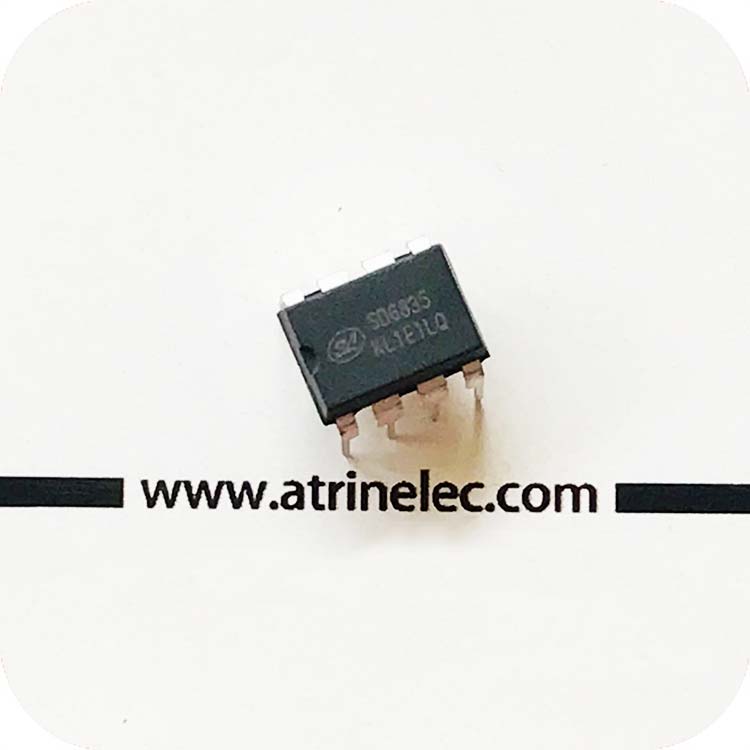

ایسی PFM+PWM کنترلر ساخت انواع منابغ تغذیه با ماسفت قدرتمند ولتاژ بالا
CURRENT MODE PWM+PFM CONTROLLER WITH BUILT-IN HIGH VOLTAGE MOSFET
استفاده در انواع صنایع از جمله نوسان ساز(PWM)انواع بردهای درایو دستگاه های جوش و برش و اینورتری
درایورهای دور موتور و .....
ساخت انواع اداپتور
منابع تغذیه
دریافت دیتا شیت
اطلاعات بیشتر:
|
Product description
|
|
| |
|
SD6835 is current mode PWM+PFM controller used for SMPS with built-in high-voltage MOSFET and external sense resistor.
It features low standby power and low start current. In standby mode, the circuit enters burst mode to reduce the standby power dissipation.
The switch frequency is 25~67KHz decided by the load with jitter frequency for low EMI.
Built-in limit output power compensation circuit is used for balancing the limit output power under different AC voltage inputs. Built-in slope compensation circuit is used for adapting to more transformer applications. Maximum peak current compensation during power-on reduces pressure on transformer to avoid saturation, the peak current compensation will decrease for balance after power-on. Limit output current can be adjusted through the resistor connected to CS.
It integrates various protections such as undervoltage lockout, overvoltage protection, overload protection, leading edge blanking and thermal shutdown. The circuit will restart until normal if protection occurs.
|
|
|
|
|
|
|
Features
|
|
| |
- Energy Star 2.0 standard
- Lower start-up current
- Various switching frequency following load for the high efficiency
- EMI Frequency jitter for low EMI
- Overvoltage, overload and over temperature protections
- CS protection
- External peak current sense resistor
- Limit output power compensation
- Slope compensation
- Undervoltage lockout
- Built-in high voltage MOSFET
- Auto restart mode
- Maximum peak current compensation for initialization to realize the soft start
- function.
- FB Burst mode
- VCC Burst mode
- Cycle by cycle current limit
|
|
|
|
|
|
Block diagram
|
|
| |
 |
|
|
|
|
