AT24C512/ATMEL934 اورجینال

نقد و بررسی اجمالی

ایتوپرام 512 کیلو بیت ،65 کیلو بایت با رابط I2C دوسیمه ای سی (EEPROM 512-Kbit (65,536 x 8 اورجینال

 دریافت دیتا شیت

Features

(Low-voltage and Standard-voltage Operation – 2.7 (VCC = 2.7V to 5.5V •

 Internally Organized 65,536 x 8 •

Two-wire Serial Interface •

Schmitt Triggers, Filtered Inputs for Noise Suppression •

Bidirectional Data Transfer Protocol •

1 MHz (5V), 400 kHz (2.7V) and 100 kHz (1.8V) Compatibility •

Write Protect Pin for Hardware and Software Data Protection •

(128-byte Page Write Mode (Partial Page Writes Allowed •

(Self-timed Write Cycle (5 ms Max •

High Reliability – Endurance: 100,000 Write Cycles – Data Retention: 40 Years •

Automotive Devices Available •

Packages  8-lead PDIP •

Die Sales: Wafer Form, Waffle Pack and Bumped Die •

Description

The AT24C512 provides 524,288 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 65,536 words of 8 bits each. The device’s cascadable feature allows up to four devices to share a common two-wire bus. The device is optimized for use in many industrial and commercial applications where lowpower and low-voltage operation are essential. The devices are available in spacesaving 8-pin PDIP packages. In addition, the entire family is available in 2.7V (2.7V to 5.5V)  versions

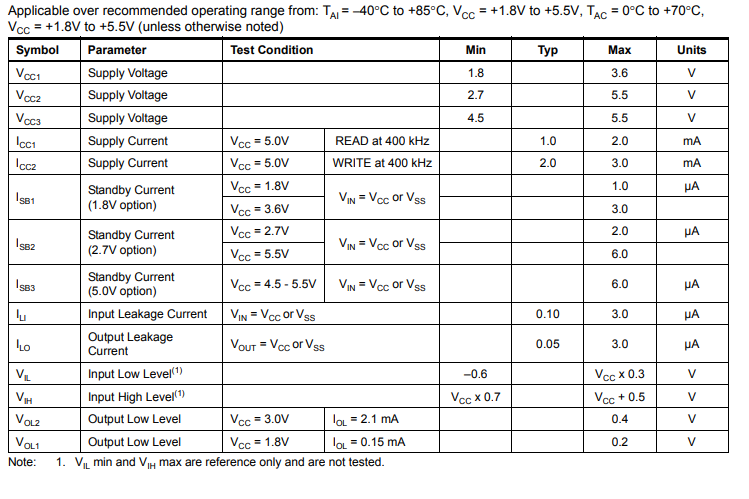

مشخصات:
