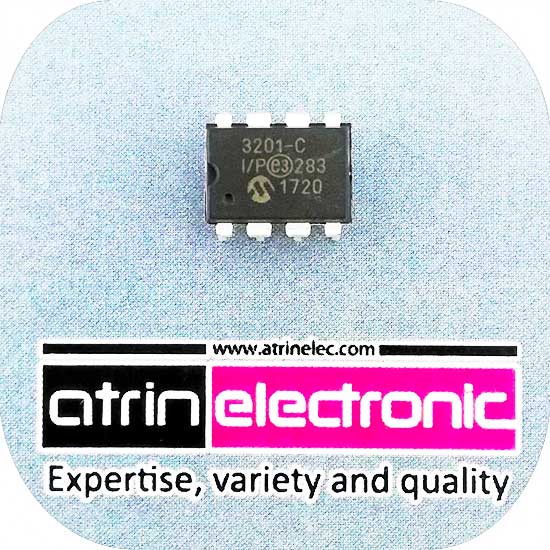

مبدل DAC ،تبدیل سیگنال دیجیتال 12 بیت به سیگنال آنالوگ با رابط SPI ، ولتاژ کاری 2.7 تا 5.5 ولت 2.7V 12-Bit A/D Converter with SPI Serial Interface
موارد مصرف:
استفاده در انواع صنایع از جمله بردهای مبدل انالوگ به دیجیتال
مخابراتی
مدارات مبدل سیگنال
Features
• 12-bit resolution
• ±1 LSB max DNL
(±1 LSB max INL (MCP3201-B
( ±2 LSB max INL (MCP3201-C
On-chip sample and hold
(SPI serial interface (modes 0,0 and 1,1
Single supply operation: 2.7V - 5.5V
100 ksps maximum sampling rate at VDD = 5V
50 ksps maximum sampling rate at VDD = 2.7V
Low power CMOS technology
500 nA typical standby current, 2 μA maximum
400 μA maximum active current at 5V
Industrial temp range: -40°C to +85°C
