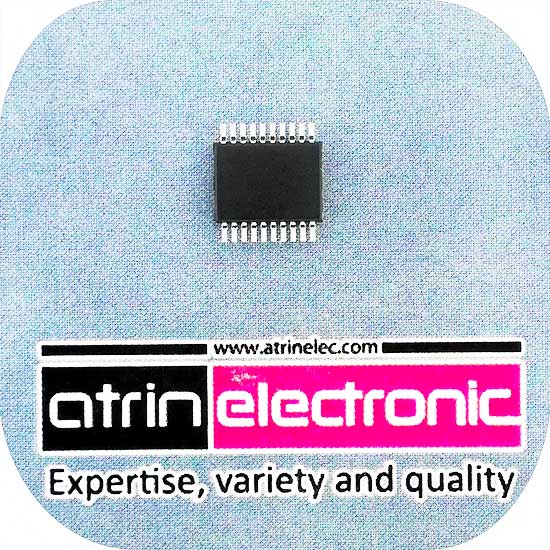

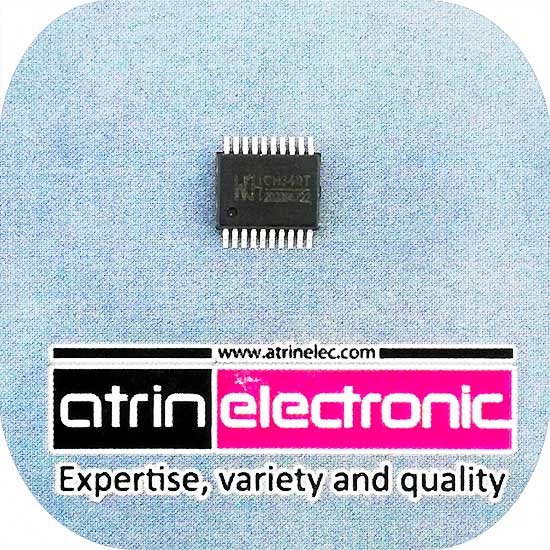

مبدل USB به UART ، یو اس بی به سریال ،پشتیبانی سرعت سریال تا 2 مگا بیت بر ثانیه USB to serial chip
دریافت دیتا شیت
موارد مصرف:
استفاده در انواع بردهای مبدل یو اس بی به سریال
Features
Full speed USB device interface, conforms to USB Specification Version 2.0, only needs crystal and
capacitance external
Emulate standard serial interface, used to upgrade the former peripheral device, or add excess seriainterface through USB
Totally compatible with serial application program in computer endpoint Windows operation system
Hardware full duplex serial interface, set transceiver buffer, supports communication baud rate varies from 50bps to 2Mbps
Supports common MODEM liaison signal RTS, DTR, DCD, RI, DSR and CTS
Through adding level converter equipment to supply RS232, RS485, RS422 and other interface
Supports IrDA criterion SIR infrared communication, supports baud rate varies from 2400bps to 115200bps
For it is through USB converts to serial interface, only compatible with application layer not totally
Software compatible with CH341, using drive of CH341 directly
Support 5V and 3.3V source voltage
