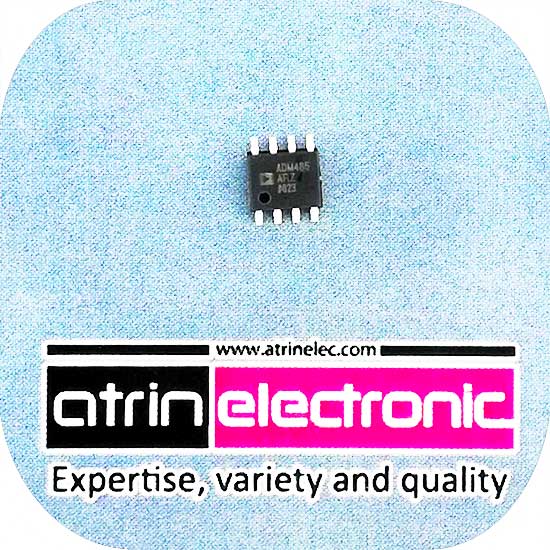

برقراری ارتباط سریال صنعتی جهت ارتباط استاندارد RS485 اس ام دی transceivers for RS-485 communication
FEATURES
Meets EIA RS-485 standard
5 Mbps data rate
Single 5 V supply
–7 V to +12 V bus common-mode range
High speed, low power BiCMOS
Thermal shutdown protection
Short-circuit protection
Driver propagation delay: 10 ns typical
Receiver propagation delay: 15 ns typical
High-Z outputs with power off
Superior upgrade for LTC485
ایتوپرام 64 کیلو بیت ،8 کیلو بایت با رابط I2C دوسیمه ای سی (EEPROM 64-Kbit (8192 x 8 اورجینال
ای سی مودم FSK سنکرون و آسنکرون به صورت Half Duplex جهت ارسال دیتا از طریق خطوط برق FSK power line transceiver
مقاومت اس ام دی 5 درصد پکیج 0805 - SMD RESISTOR 220 کیلو اهم 0805 تلرانس 5 درصد
مقاومت اس ام دی 5 درصد پکیج 1206 - SMD RESISTOR 150 اهم 1206 تلرانس 5 درصد
