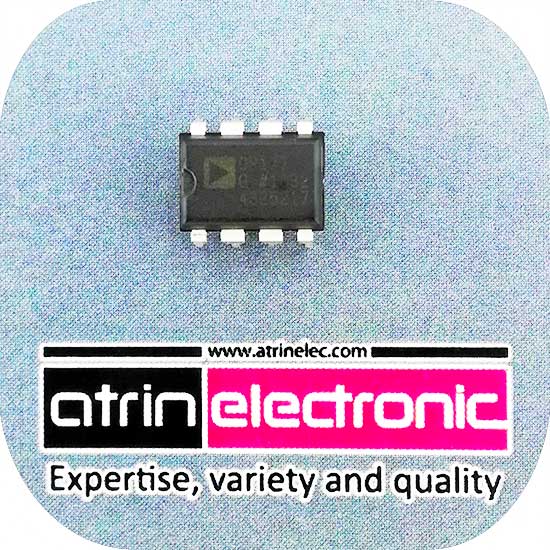

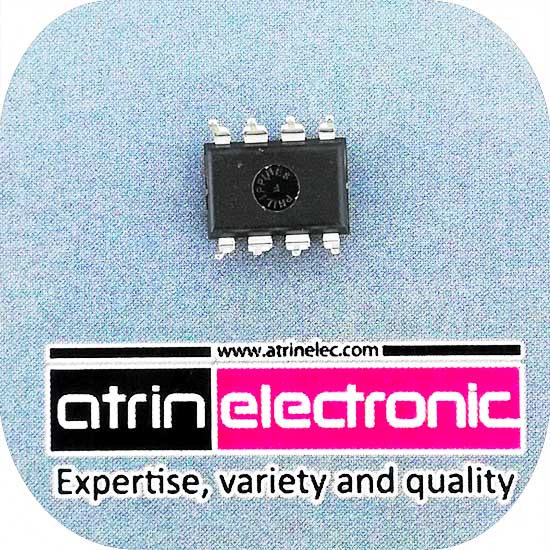

اپ امپ ،تقویت کننده عملیاتی فوق العاده دقیق دارای پهنای باند 600 کیلو هرتز Ultraprecision Operational Amplifier
FEATURES
:Ultralow Offset Voltage
TA = +258C: 10 mV max
–55C ≤ TA ≤ +1258C: 20 mV max
Outstanding Offset Voltage Drift: 0.1 mV/8C max
:Excellent Open-Loop Gain and Gain Linearity
12 V/mV typ
CMRR: 130 dB min
PSRR: 120 dB min
Low Supply Current: 2.0 mA max
(Fits Industry Standard Precision Op Amp Sockets (OP07/OP77
