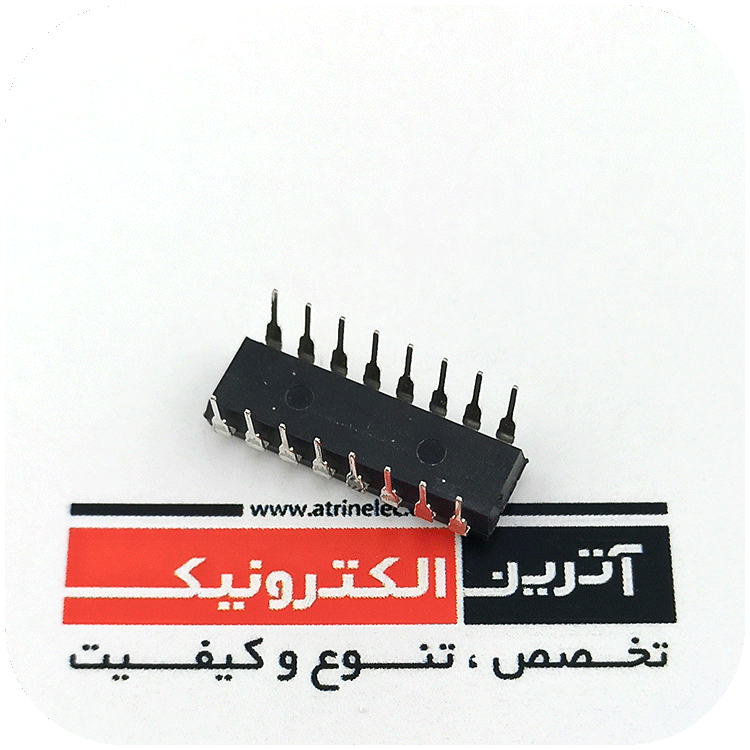

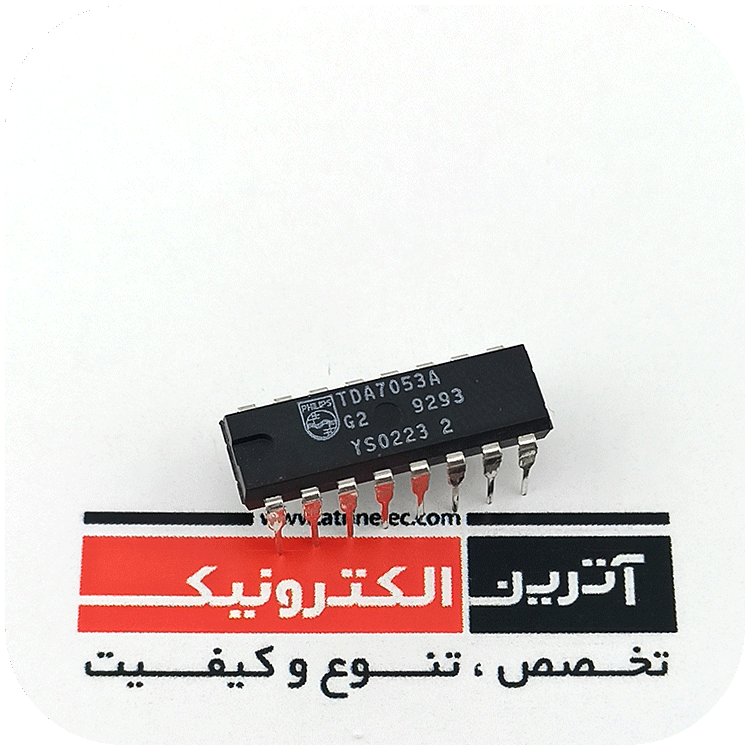

ای سی تقویت کننده صوت ،آمپلی فایر صدا 2 کاناله 1 وات و ولتاژ کاری 3 تا 18 ولت دارای اتصال کوتاه امکانات دیگر 2 x 1 W portable/mains-fed stereo power amplifier
GENERAL DESCRIPTION
The TDA7053 is an integrated class-B stereo power amplifier in a 16-lead dual-in-line (DIL) plastic package. The device, consisting of two BTL amplifiers, is primarily developed for portable audio applications but may also be used in mains-fed applications.
Features
No external components
No switch-ON/OFF clicks
Good overall stability
Low power consumption
Short-circuit-proof
