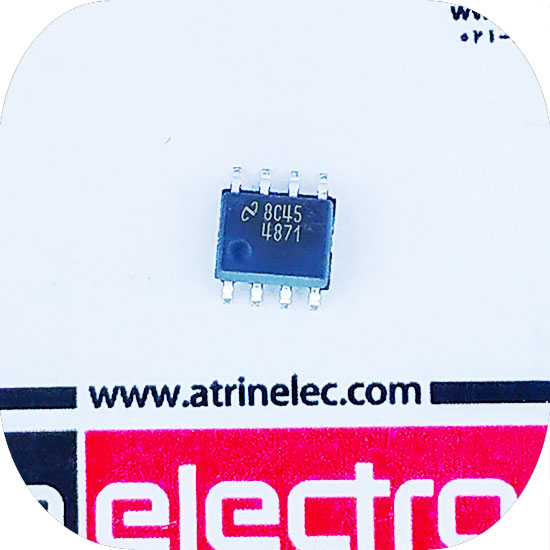

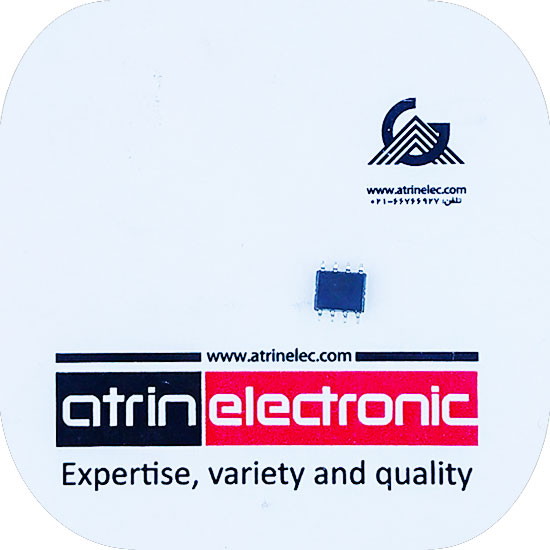

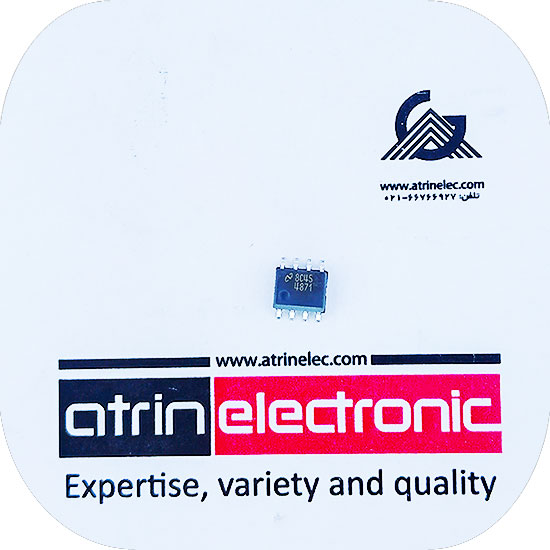

ای سی تقویت کننده صوت ،آمپلی فایر صدا 3 وات دارای مد Shutdown و کار با تغذیه 2 تا 5.5 ولت 3W Audio Power Amplifier with Shutdown Mode
FEATURES
No Output Coupling Capacitors, Bootstrap Capacitors, or Snubber Circuits Required
Unity-gain Stable
WSON, VSSOP, SOIC, or PDIP Packaging
External Gain Configuration Capability
Pin Compatible with the LM4861
APPLICATIONS
Portable Computers
Desktop Computers
Low Voltage Audio Systems
KEY SPECIFICATIONS
PO at 10% THD+N, 1kHz
(LM4871LD: 3Ω , 4Ω Loads; 3W (typ), 2.5 W (typ
(All other LM4871 Packages: 8Ω load 1.5 W (typ
(Shutdown Current 0.6µA (typ
Supply Voltage Range 2.0V to 5.5 V
(THD at 1kHz at 1W Continuous Average Output Power into 8Ω 0.5% (max
