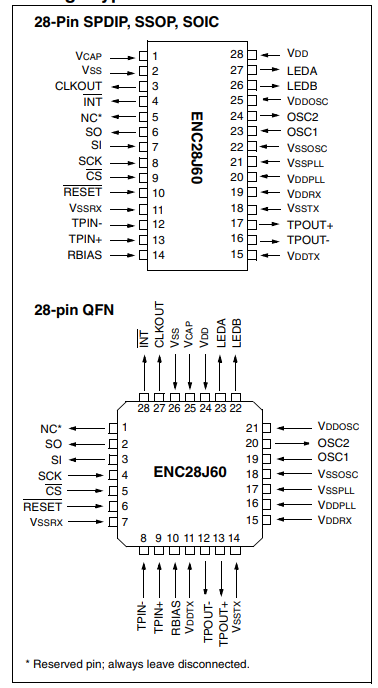

ای سی MAC و فیزیکال اترنت ،شبکه با رابط SPI تا سرعت 20 مگاهرتزو رم 8 کیلو بایت و دارای DMA داخلی برای انتقال سرعت بالا اطلاعات Stand-Alone Ethernet Controller with SPI Interface
Ethernet Controller Features
IEEE 802.3 compatible Ethernet controller
Integrated MAC and 10BASE-T PHY
Supports one 10BASE-T port with automatic polarity detection and correction
Supports Full and Half-Duplex modes
Programmable automatic retransmit on collision
Programmable padding and CRC generation
Programmable automatic rejection of erroneous packets
SPI Interface with clock speeds up to 20 MHz
Buffer
8-Kbyte transmit/receive packet dual port SRAM
Configurable transmit/receive buffer size
Hardware-managed circular receive FIFO
Byte-wide random and sequential access with auto-increment
Internal DMA for fast data movement
Hardware assisted checksum calculation for various network protocols
(Medium Access Controller (MAC
Features
Supports Unicast, Multicast and Broadcast packets
:Programmable receive packet filtering and wake-up host on logical AND or OR of the following
Unicast destination address
Multicast address
Broadcast address
Magic Packet
Group destination addresses as defined by 64-bit hash table
Programmable pattern matching of up to 64 bytes at user
defined offset
Physical Layer (PHY) Features
Loopback mode
Two programmable LED outputs for LINK, TX, RX, collision and full/half-duplex status
