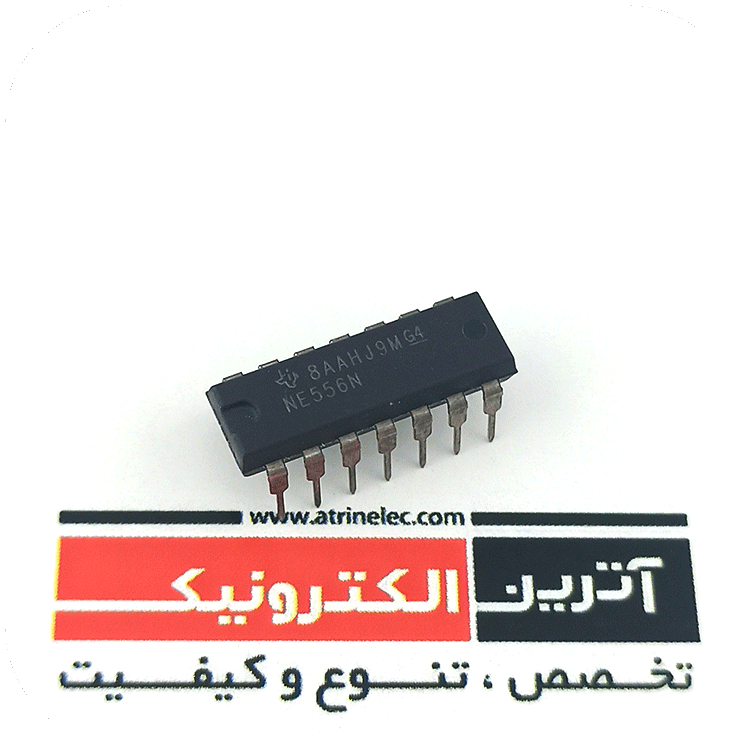

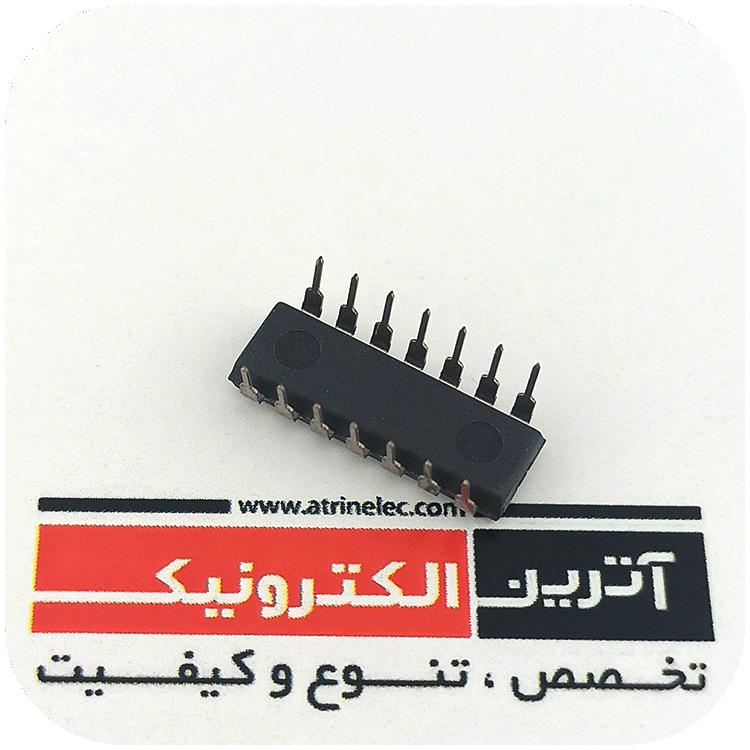

این ای سی در واقع دارای دو ای سی 555 می باشد . قابلیت راه اندازی به صورت استابل،مونواستابل،تایمینگ Dual timer
DESCRIPTION
Both the 556 and 556-1 Dual Monolithic timing circuits are highly stable controllers capable of producing accurate time delays or oscillation. The 556 and 556-1 are a dual 555. Timing is provided by an external resistor and capacitor for each timing function. The two timers operate independently of each other, sharing only VCC and ground. The circuits may be triggered and reset on falling waveforms. The output structures may sink or source 200mA.
FEATURES
(Turn-off time less than 2µs (556-1
(Maximum operating frequency >500kHz (556-1
Timing from microseconds to hours
Replaces two 555 timers
Operates in both astable and monostable modes
High output current
Adjustable duty cycle
TTL compatible
Temperature stability of 0.005%/°C
SE556-1 compliant to MIL-STD or JAN
