ماژول بلوتوث HC-06 and adapter اورجینال

نقد و بررسی اجمالی

ماژول بلوتوث با ارتباط سریال با پشتیبانی بلوتوث ورژن دو و EDR HC-06 and adapter Bluetooth Modules (802.15.1) BLUETOOTH-SERIAL-HC-06

 دریافت دیتا شیت

User Instructional Manual

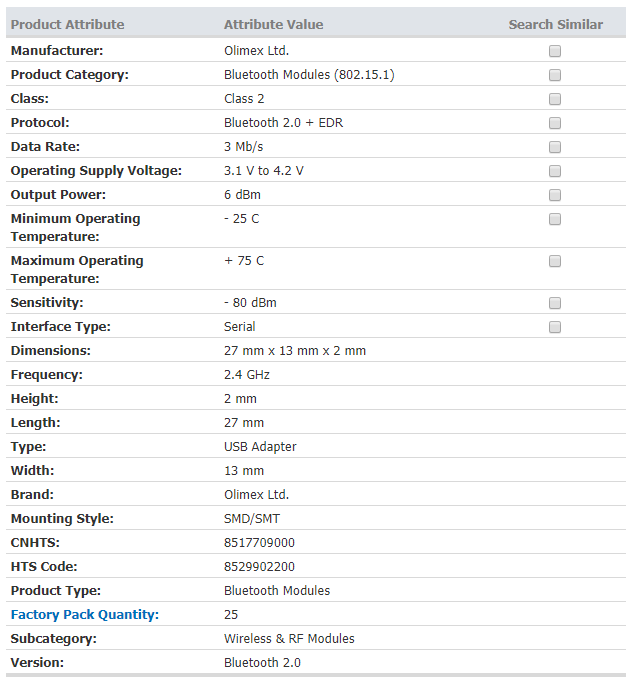

The HC-06 is a slave Bluetooth to serial adapter. It measures only 28mm x 15 mm x 2.35mm.
Possible baud rates: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200

Manufactured By Atomic Market
Allows your device to both send or receive the TTL data via Bluetooth technology without connecting a serial cable to your computer.
Works with any USB Bluetooth adapters.
Default Baud Rate: 9600,8,1,n.
Built in antenna.
Coverage up to 30ft.
Bluetooth version: V2.0+EDR
Operating voltage: 3.3V
Default Baud Rate: 9600,8,1,n.
Signal coverage: 30ft
Item size: 4.3 * 1.6 * 0.7cm
Item weight: 3g
Package size: 9 * 3 * 1cm
Package weight: 8g
Commercial Series: Bluetooth module board Series
With LED indicator light, use 150mA and 3.3V regulation chip.

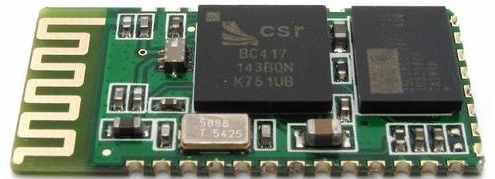

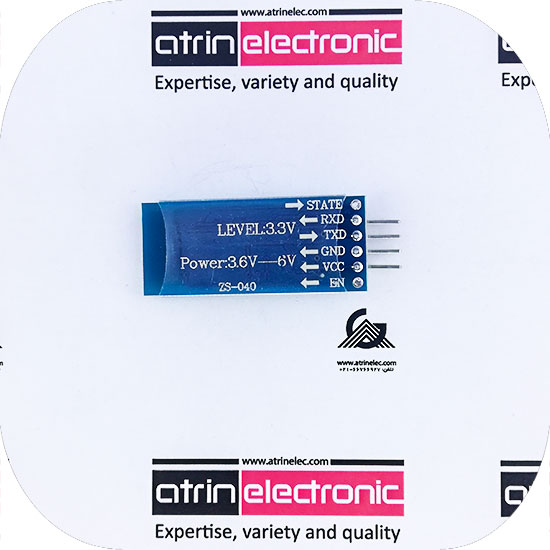

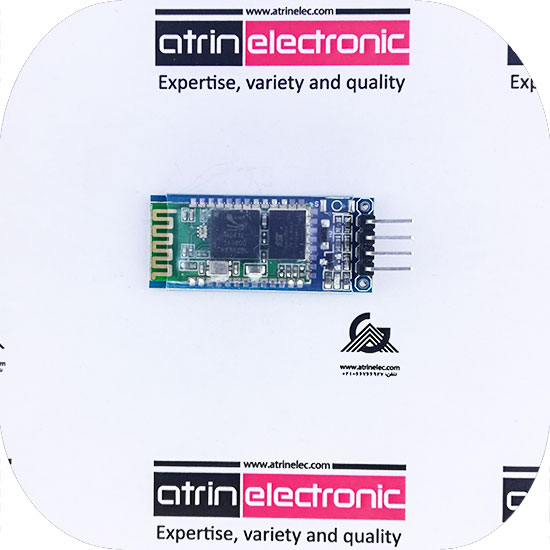

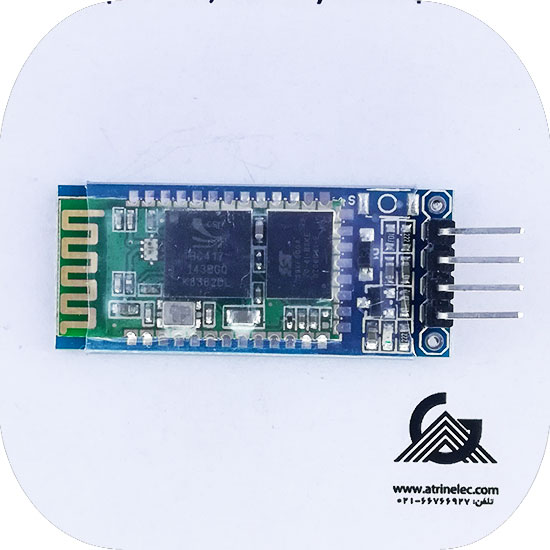

With VCC.GND.TXD.RXD foot for the Bluetooth
With "Re-seach" button(ON/OFF/WAKE foot for it , external MCU outinput "High level" can control module to re-seach)
Compatible with bluetooth master module".slave module"or master-slave(whole) module.
Input voltage: 3.3~6V
Size: 1.55cm*3.98cm
Note:
input power supply 3.3~6V, Prohibit more than 7V
No "Automatically prevent power supply peversing func", so please correctly connect power supply
We advise to install "Bluetooth master module"
The "State" is output foot for LED status, when bluetooth "Unconnected", output "Pulse" ; when bluetooth "connected", output "High level", we can determine the states from "MCU"
If only the board , No any "Bluetooth Function "

AT commands

Command test

Change baud rate

Change device name

Change pin code
