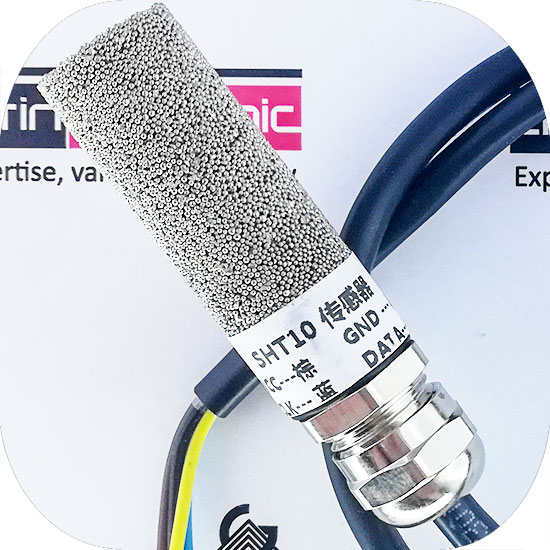

سنسور SHT10 با محافظ نمونه اصلی-دارای گلند و کاور فلزی اورجینال - کیفیت بالا

نقد و بررسی اجمالی

سنسور اندازه گیری دما و رطوبت SHT10 با روکش محافظ نمونه اصلی Adafruit Accessories Mesh-protected Weather-proof Temperature/Humidity Sensor - SHT10

 دریافت دیتا شیت

مشخصات:

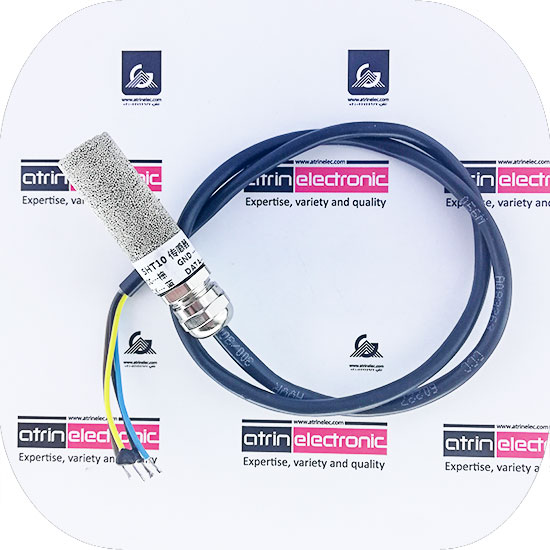

brown --> VCC  سیم قهوه ایی

black --> GND  سیم مشکی

yellow --> DATA سیم زرد

blue --> CLK سیم  آبی

SHT1x (including SHT10, SHT11 and SHT15) is Sensirion’s family of surface mountable relative humidity and temperature sensors.
The sensors integrate sensor elements plus signal processing on a tiny foot print and provide a fully calibrated digital output.
A unique capacitive sensor element is used for measuring relative humidity while temperature is measured by a band-gap sensor.
The applied CMOSens® technology guarantees excellent reliability and long term stability.
Both sensors are seamlessly coupled to a 14bit analog to digital converter and a serial interface circuit.
This results in superior signal quality, a fast response time and insensitivity to external disturbances (EMC).
Each SHT1x is individually calibrated in a precision humidity chamber.
The calibration coefficients are programmed into an OTP memory on the chip.
These coefficients are used to internally calibrate the signals from the sensors.
The 2-wire serial interface and internal voltage regulation allows for easy and fast system integration.
The tiny size and low power consumption makes SHT1x the ultimate choice for even the most demanding applications.
SHT1x is supplied in a surface-mountable LCC (LeadlessChip Carrier) which is approved for standard reflow soldering processes.
The same sensor is also available with pins (SHT7x) or on flex print (SHTA1).
