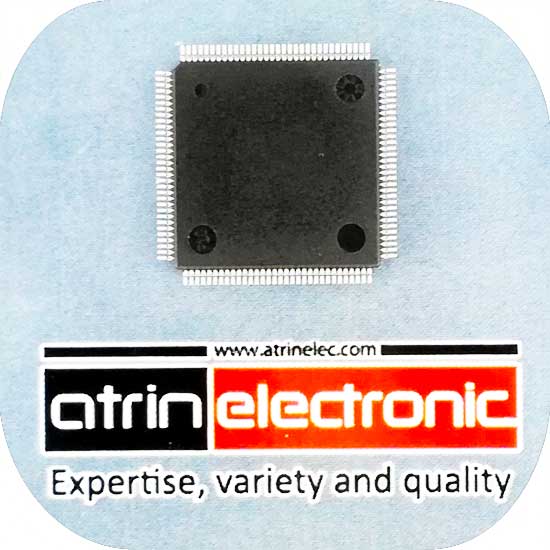

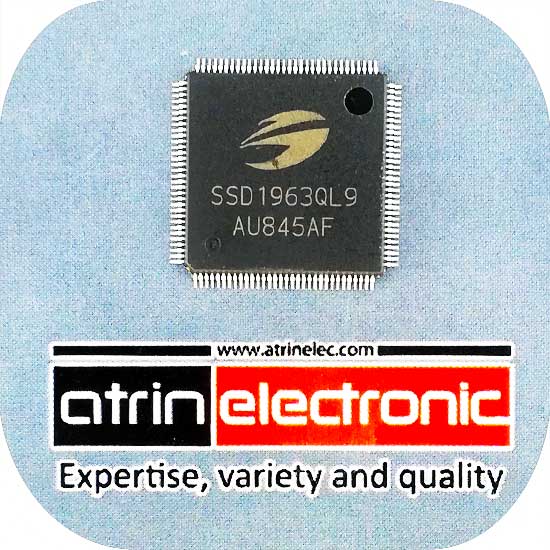

SSD1963QL9 اورجینال

نقد و بررسی اجمالی

آی سی کنترلر ال سی دی ها رنگی با رزولیشون 864X480 به صورت 24 بیت با حافظه 1215 کیلو بایت 1215KB Embedded Display SRAM LCD Display Controller

 دریافت دیتا شیت

GENERAL DESCRIPTION

SSD1963 is a display controller of 1215K byte frame buffer to support up to 864 x 480 x 24bit graphics content. It also equips parallel MCU interfaces in different bus width to receive graphics data and command from MCU. Its display interface supports common RAM-less LCD driver of color depth up to 24 bit-perpixel.

FEATURES

Display feature

Built-in 1215K bytes frame buffer. Support up to 864 x 480 at 24bpp display

Support TFT 18/24-bit generic RGB interface panel

Support 8-bit serial RGB interface

Hardware rotation of 0, 90, 180, 270 degree

Hardware display mirroring

Hardware windowing

Programmable brightness, contrast and saturation control

Dynamic Backlight Control (DBC) via PWM signal

MCU connectivity

8/9/16/18/24-bit MCU interface

Tearing effect signal

I/O Connectivity

4 GPIO pins

Built-in clock generator

Deep sleep mode for power saving

Core supply power (VDDPLL and VDDD): 1.2V±0.1V

I/O supply power(VDDIO): 1.65V to 3.6V

LCD interface supply power (VDDLCD): 1.65V to 3.6V
