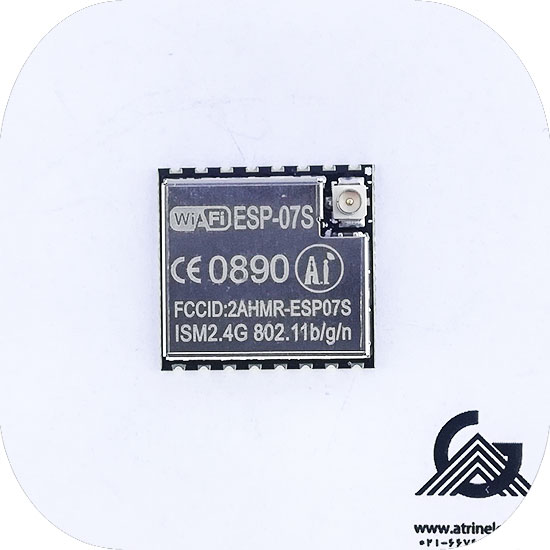

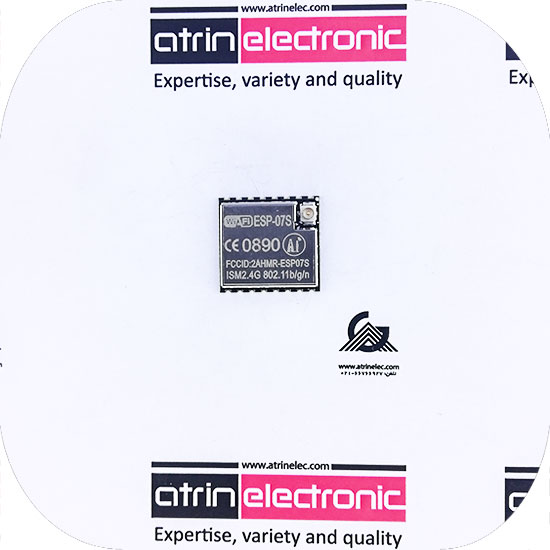

ماژول ESP-07S اورجینال

نقد و بررسی اجمالی

ماژول WIFI قابل تنظیم به صورت کلاینت و سرور از گروه ES8266 ارسال اطلاعات از طریق پروتکل TCP/IP ESP-07S Serial To WIFI Module Industrial Grade Wireless Module High Level Operate 3.3V Power Supply

 دریافت دیتا شیت

 AT Instruction - At Command

:Main Parameter

1.Wireless Standard:802.11 b/g/n

(2.Frequency Range:2.4GHz-2.5GHz (2400M-2483.5M

3.Data Interface:UART/HSPI/I2C/I2S/Ir Remote Contorl

4.Operating Voltage:GPIO/PWM 3.0-3.6V

(5.Operating Current:80mA (average

6.Operating Temperature:-40℃~125℃

7.Storage Temperature:normal temperature

8.External Interface:N/A

9.Wireless Network Mode:station/softAP/SoftAP+station

10.Security Mechanism:WPA/WPA2

11.Encryption Type:WEP/TKIP/AES

12.Upgrade Firmware:local serial port download/cloud upgrade/mainframe download

13.Software Development:support custome server,provide SDK for customer secondary development

14.Network Protocol:IPv4,TCP/UDP/HTTP/FTP

15.User Configuration:AT instruction set,cloud server,adroid/iOS APP

16.Size:17*16*3mm

:Features

1.Support 802.11 b/g/n standard

2.Built-in Tensilica L106 low power consumption 32 bit MCU,primary frequency supports 80 MHz and 160 MHz,support RTOS

3.Built-in 10 bit high-precision ADC

4.Built-in TCP/IP protocol stack

5.Built-in TR switch,balun,LNA,power amplifier and matching network

6.Built-in PLL,AVR and power management component,802.11b mode +20dBm output power

7.A-MPDU,A-MSDU polymerization and 0.4s guard interval

8.WiFi 2.4 GHz,support WPA/WPA2 security mode

9.Support AT remote upgrade and cloud OTA upgrade

10.Support STA/AP/STA+AP operating mode

(11.Support Smart Config function (include Android and iOS device

12.HSPI,UART,I2C,I2S,IR Remote Control,PWM,GPIO

13.Deep sleep holding current is 10uA,power off current is less than 5uA

14.Within 2ms awakening,connect and transfer data package

(15.Standby state power consumption is less than 1.0 mW (DTIM3

16.Operating Temperature Range:-40℃~125℃

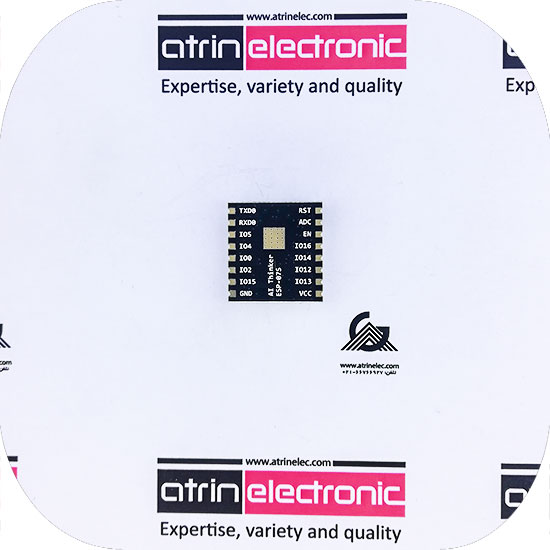

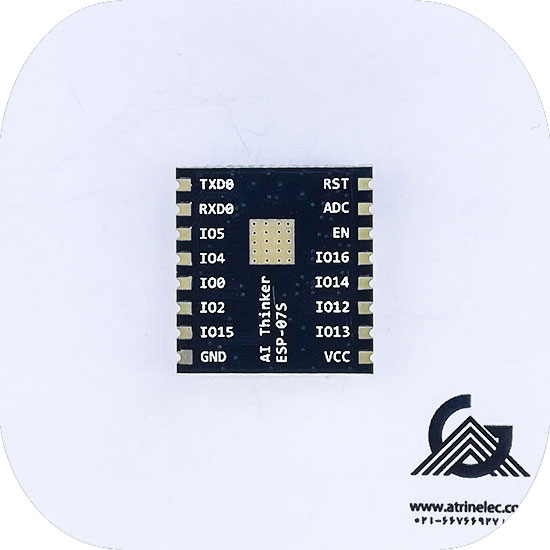

:Pin Definition

1.RST:reset module

2.ADC:A/D conversion result,input voltage range is 0-1V;value range:0?1024

3.CH_PD:high level operate;low level module power off

4.GPIO16:connect with RST pin can achieve deep sleep awakenning

5.GPIO14:HSPI_CLK

6.GPIO12:HSPI_MISO

7.GPIO13:HSPI_MOSI; UART0_CTS

8.VCC:3.3V power supply

9.GND:GND

10.GPIO15:MTDO;HSPICS;UART0_RTS

11.GPIO2:UART1_TXD

12.GPIO0:GPIO0

13.GPIO4:GPIO4

14.GPIO5:GPIO5

15.RXD0:UART0_RXD;GPIO3

16.TXD0:UART0_TXD;GPIO1
