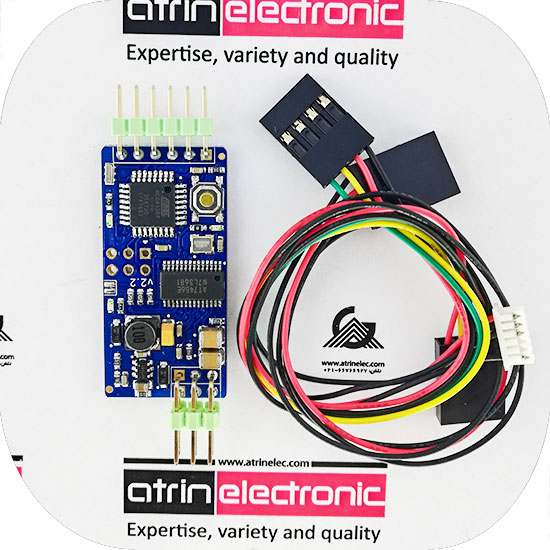

جهت نوشتن پارامتر و طرح گرافیکی بر روی تصویر ارسالی MinimOSD OSD For MultiWii OSD & KV Team Mod

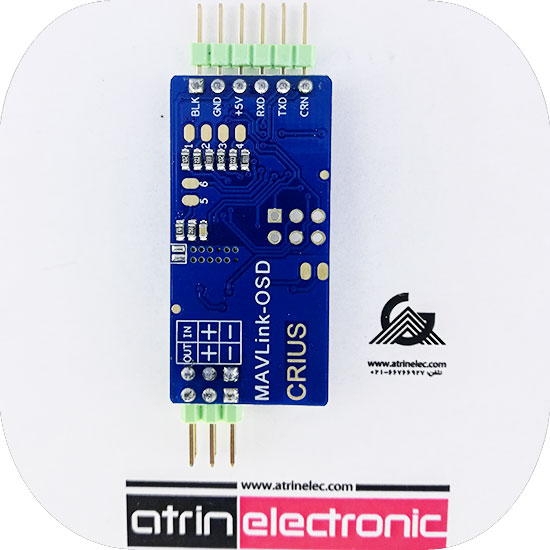

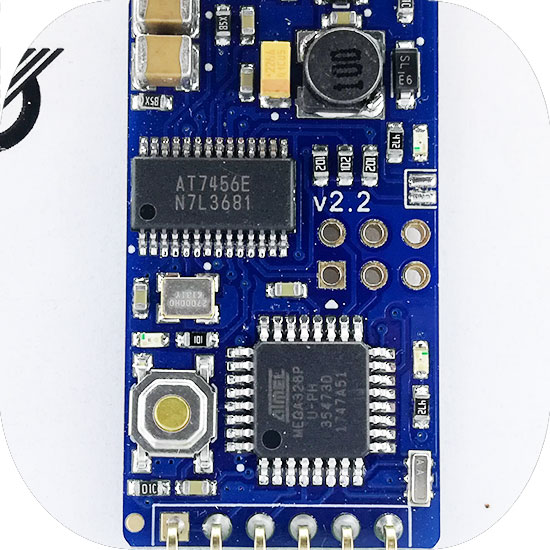

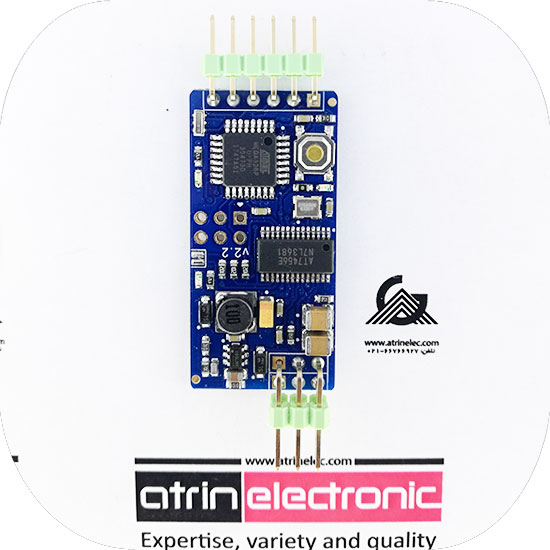

The MinimOSD comes pre-programmed with Multi Wii OSD.It differs from a lot of the other MinimOSD clones on the market by having additional input pins to allow information such as battery voltage and RSSI data to be displayed directly on the OSD (See below). Its main components are an ATmega328P 8 bit microcontroller with an Arduino bootloader, and a MAX7456 monochrome on-screen display. Programming is done through an FTDI cable using the arduino software. By re-programming the OSD can also be used for the APM flight controller or CC3D

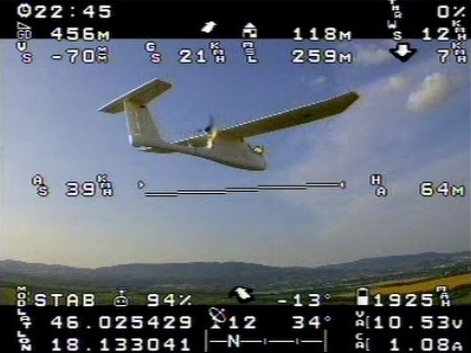

The KV Team Mods allows for direct monitoring of battery voltages via 8 additional pins ( BAT1, GND, BAT2, GND, RSSI, GND, VIOUT, GND). The BAT pins already have voltage dividers and can read upto 4s directly. VIOUT (Current Sensor Input) & RSSI support up to max 5v input. With supported firmware you can have this additional information appear directly on the OSD
Specifications
ATmega328P with Arduino bootloader
MAX7456 monochrome on-screen display
FTDI cable compatible pinout
Standard 6-pin ISP header
Two independent power sections with an LED indicator on each
Solder jumpers for combining the power sections
+5V 500mA regulator for up to +12V supply input
Solder jumper for PAL video option
Exposed test points for HSYNC and LOS
Dimensions: 0.7"W x 1.7"L (2.4" w/ pins as shown) x 0.3"H
