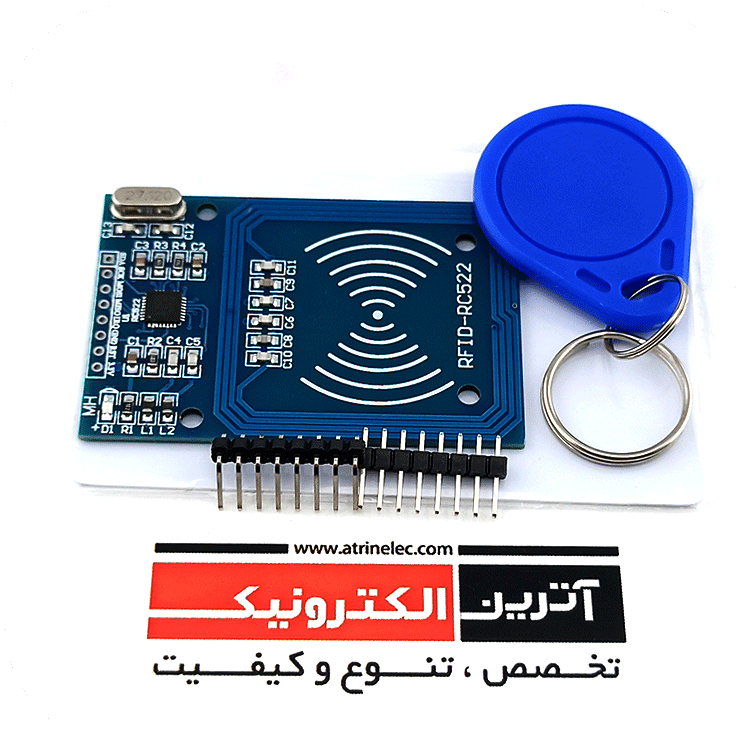

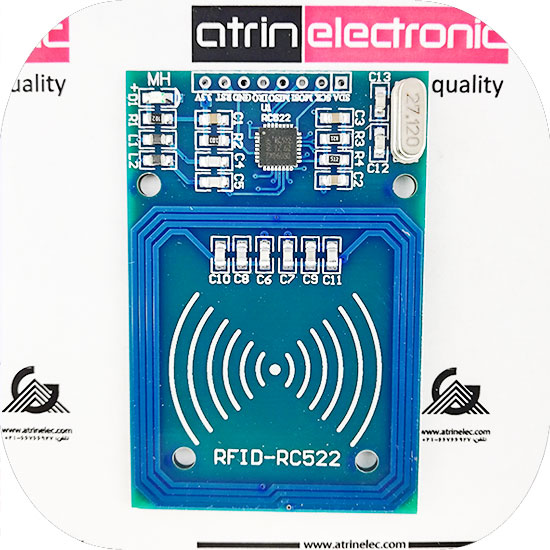

ماژول RC522 RFID اورجینال

نقد و بررسی اجمالی

ماژول ار اف ای دی با قابلیت خواندن و نوشتن اطلاعات بر روی کارت مایفر Modul RFID RC522 13.56 Mhz

 دریافت دیتا شیت

معرفی ماژولRFID RC522

مشخصات:

Current: 13-26mA / DC 3.3V
Rest current: 10-13mA / DC 3.3V
Sleep current: <80uA
Peak current: <30mA
Frequency: 13.56 MHz

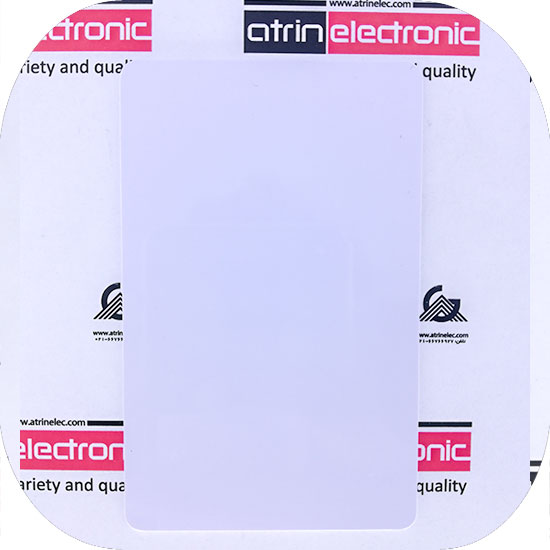

Supported card types: S50, S70, UltraLight, Pro, Desfire
Product Physical Features: Dimensions: 40mm × 60mm
Environment Operating Temperature: -20-80 degrees Celsius
Environment Storage Temperature: -40-85 degrees Celsius
Relative humidity: 5% -95%
Data Transfer Rate: Max. 10 Mbit / s

Main Chip: Fudan F08 compatible S50

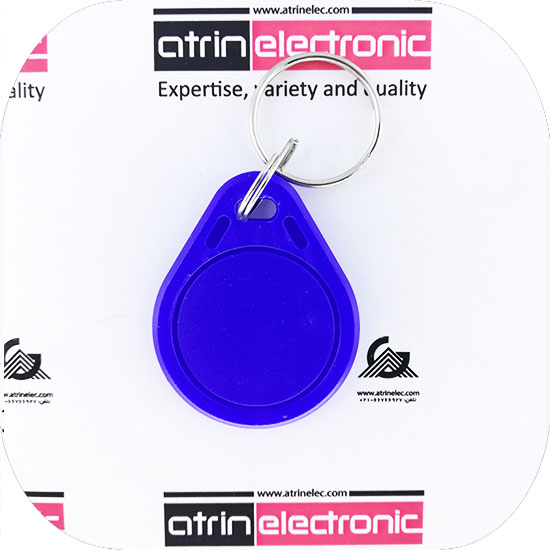

Small, durable, do not fade
Waterproof, shockproof, anti-corrosion
Can be hung on channeling keychain for easy carrying
Storage capacity: 8Kbit, 16 partitions, each partition with 2 grounp passwords
Size: Approx. 40.5×32×4.2mm
Operating Frequency: 13.56 MHz
Communication speed: 106K Boud
Read and write distance: 2.5 ~ 10cm
Read and write time: 1 ~ 2ms
Operating Temperature: -20 ~ 85
Endurance:> 100,000 times
Color: blue
