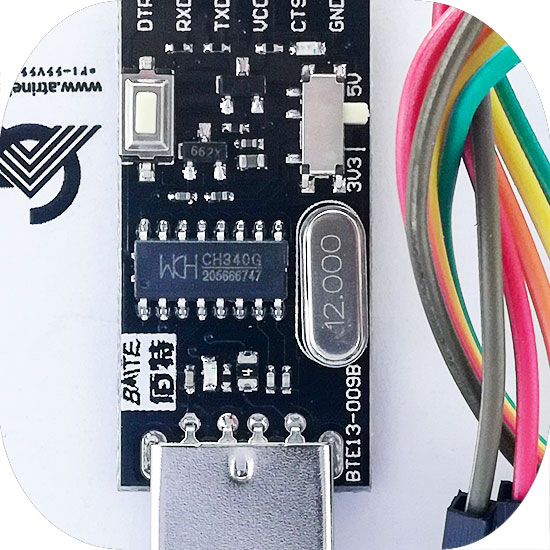

مبدل یو اس بی به سریال با چیپ CH340 - مبدل سریال به USB - USB to TTL Transfer USB به UART - دارای کلید انتخاب تغذیه 3.3 و 5 ولت
مشخصات:
مشخصات - پارامترها |
مقادیر |
خانواده |
ماژول |
سری |
مبدل USB به SERIAL UART |
تعداد پین |
6 |
ولتاژکاری |
3.3-5V |
جریان کاری |
30mA |
پروتکل ارتباطی |
UART |
عملکرد |
ارسال و دریافت اطلاعات سریال به USB |
نوع مونتاژ |
DIP |
ویژگی خاص |
دارای کلید انتخاب ولتاژ - چیپ CH340 |
Built-in USB to TTL Transfer chip
Designed to be used for USB to TTL electronic projects
TTL interface output, easy to connect to your MCU
Dual 3.3V and 5V Power output, work with 3.3v and 5v target device
The mini module is designed specifically for STC download and ARDUINO PRO, supports all series of STC microcomputer with cold start reset button
(Supports WIN7/VISTA/MAC/LINUX(32 bit /64 bit system
USB to TTL conversion board used for STC microcontroller download DVD/ hard disk / router /GPS upgrade
For STC Download: SCM must be a minimum system and external crystal oscillator
Note: USB to Serial port can use the version above STC-ISPV3.94 to download the old version of STC microcontroller, as STC89C and STC12C series
