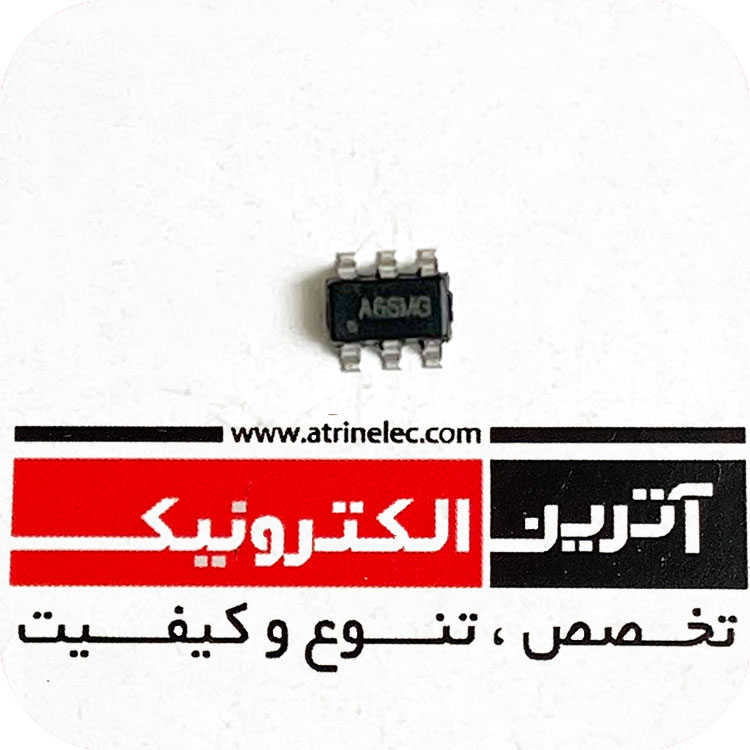

مبدل دی سی به دی سی (کانورتر )16 ولت 2 آمپر 16V,2A synchronous Step-Down Converter
استفاده در صنایع:
ماینرها - تبلت ها - نمایشگرها ی خانگی و فلت
Features
Wide 3.3V to 16V Operating input Range
2A Continuous Output Current
No Schottky Diode Required
600KHz Frequency Operation
Built-in Over Current Limit
Built-in Over Voltage Protection
Internal Soft start
Output Adjustable from 0.6V
Integrated internal compensation
Short Protection with Hiccup-Mode
Thermal Shutdown
Available in SOT23-6 ,Package
-40℃ to +85℃ Temperature Range
Applications
Digital Set-top Box (STB)
Tablet Personal Computer (Pad)
Flat-Panel Television and Monitor
Digital Video Recorder (DVR)
Portable Media Player (PMP)
General Purposes
