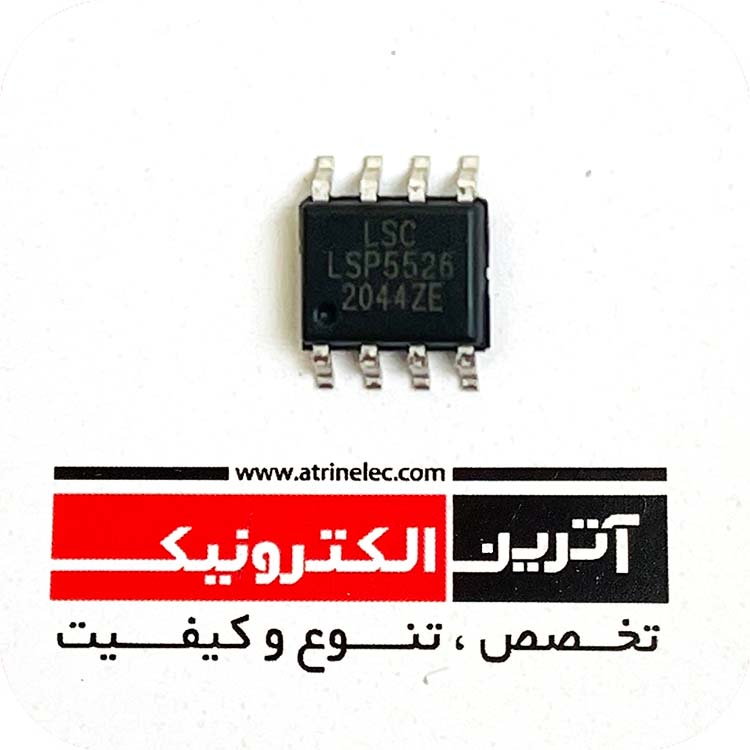

2A 23V Synchronous Buck Converter ایسی کانورتر DC-DC با جریان 2 امپر 23 ولت
ایسی مبدل 2 امپر دی سی به دی سی
کاربرد :
سیستم های توزیع قدرت
سیستم های شبکه
پاور سوپلای
لب تاب
سیستم های سوئیچینگ
General Description
The LSP5526 is a monolithic synchronous buck regulator. The device integrates 95mΩ MOSFETS that
provide 2A continuous load current over a wide operating input voltage of 4.5V to 23V. Current mode control
provides fast transient response and cycle-by-cycle current limit. An adjustable soft-start prevents inrush
current at turn on.
Features
2A Output Current
Wide 4.5V to 23V Operating Input Range
Integrated Power MOSFET Switches
Output Adjustable from 0.925V to 18Vin
Up to 96% Efficiency
Programmable Soft-Start
Stable with Low ESR Ceramic Output Capacitors
Fixed 340KHZ Frequency
Cycle by Cycle Over Current Protection
Input Under Voltage Lockout
Package: SOP-8L
Applications
Distributed Power Systems
Networking Systems
FPGA, DSP, ASIC Power Supplies
Green Electronics/ Appliances
Notebook Computers
