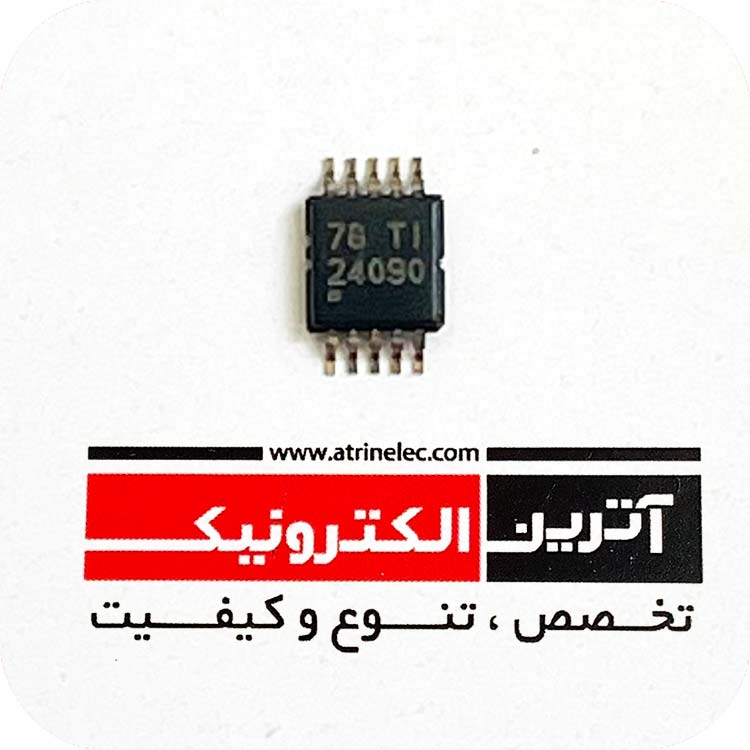

ایسی ساخت انواع منابغ تغذیه و باتری شارژر Battery Management 1A,Sgl Inp,Sgl Cell Li-Ion Batt Charger
ایسی شارژ باتری
استفاده در صنایع :
موبایل / پخش کننده های موزیک /PDAs / وسایل قدرت پایین
1 Features
• Charging
– 1% charge voltage accuracy
– 10% charge current accuracy
– Pin selectable USB 100-mA and 500-mA
maximum input current limit
– Programmable termination and precharge
threshold
• Protection
– 6.6-V overvoltage protection
– Input voltage dynamic power management
– 125°C thermal regulation; 150°C thermal
shutdown protection
– OUT short-circuit protection and ISET short
detection
– Operation over JEITA range via battery NTC
– ½ fast-charge-current at cold, 4.06 V at hot,
BQ092/3
– Fixed 10-hour safety timer
• System
– Automatic Termination and Timer Disable Mode
(TTDM) for absent battery pack with thermistor
– Status indication – charging/done
– Available in a small 10-pin MSOP package
2 Applications
• Smart phones
• PDAs
• MP3 players
• Low-power handheld devices
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Battery Management | |
| RoHS: | Details |
| Charge Management | |
| Li-Ion | |
| 4.2 V | |
| 1 A | |
| 4.5 V to 6.5 V | |
| MSOP-10 | |
| SMD/SMT | |
| BQ24090 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Maximum Operating Temperature: | + 150 C |
| Minimum Operating Temperature: | - 40 C |
| Operating Supply Current: | 800 uA |
| Pd - Power Dissipation: | 1.92 W |
| Product Type: | Battery Management |
| 2500 | |
| Subcategory: | PMIC - Power Management ICs |
| Unit Weight: | 0.000829 oz |
