ایسی امپلی فایر(تقویت کننده) سرعت بالای 100 مگا هرتزی - High Speed Operational Amplifiers 100-MHz Low Noise Volt-Feedback Amp
FEATURES
Ultra-Low 1.6 nV/√Hz Voltage Noise
• High Speed:
– 100-MHz Bandwidth [G = 2 (–1), –3 dB]
– 100-V/μs Slew Rate
• Very Low Distortion
– THD = –72 dBc (f = 1 MHz, RL = 150 Ω)
– THD = –90 dBc (f = 1 MHz, RL = 1 kΩ)
• Low 0.5-mV (Typical) Input Offset Voltage
• 90-mA Output Current Drive (Typical)
• Typical Operation from ±5 V to ±15 V

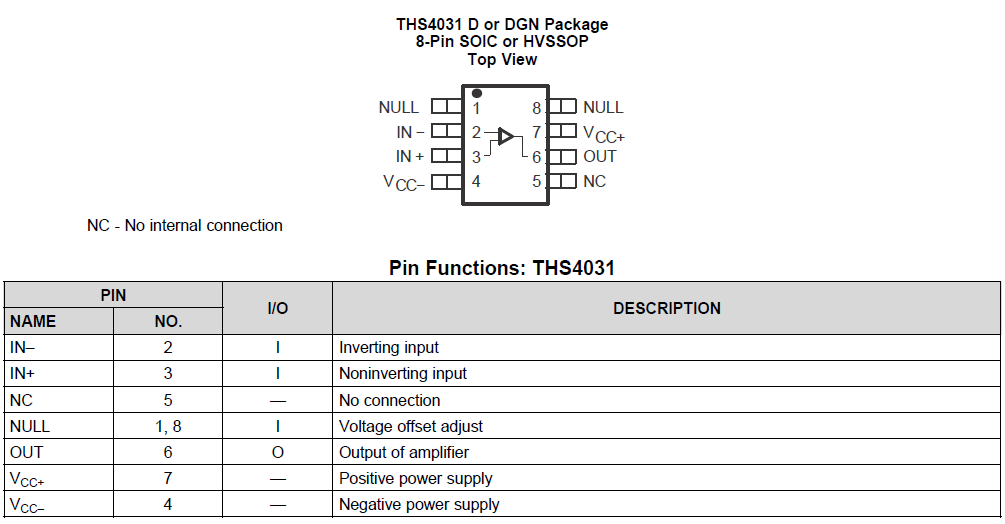

• Available in Standard SOIC and MSOPPowerPAD
™, Packages
• Evaluation Module Available
2 Applications
• Low-Noise, Wideband Amplifier for Industrial
Applications
• Voltage-Controlled Oscillators
• Active Filters
• Video Amplifiers
• Cable Drivers
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| High Speed Operational Amplifiers | |
| RoHS: | Details |
| THS4031 | |
| 1 Channel | |
| 120 MHz | |
| 100 V/us | |
| 98 dB | |
| 95 dB | |
| 90 mA | |
| 6 uA | |
| 2 mV | |
| 32 V | |
| 9 V | |
| 8.5 mA | |
| 0 C | |
| + 70 C | |
| SMD/SMT | |
| SOIC-8 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Texas Instruments |
| Development Kit: | THS4031EVM |
| en - Input Voltage Noise Density: | 1.6 nV/sqrt Hz |
| Height: | 1.58 mm |
| Length: | 4.9 mm |
| Operating Supply Voltage: | 33 V |
| Pd - Power Dissipation: | 629 mW |
| Product: | Operational Amplifiers |
| Product Type: | Op Amps - High Speed Operational Amplifiers |
| PSRR - Power Supply Rejection Ratio: | 85 dB |
| 2500 | |
| Subcategory: | Amplifier ICs |
| Width: | 3.91 mm |
| Unit Weight: | 0.002677 oz |
