ESD Suppressors / TVS Diodes 5V 8A 1PF 30KV L ARRAY دیود تی وی اس 5 ولت 8 امپر 30 کیلو ولت
Features
• ESD, IEC 61000-4-2,
±30kV contact, ±30kV air
• ESD, ISO 10605, 330pF
330Ω, ±30kV contact,
±30kV air
• EFT, IEC 61000-4-4, 80A
(tP=5/50ns)
• Lightning, 8A (8/20μs as
defined in IEC 61000-4-5
2nd Edition)
• Low capacitance of 1pF
(TYP) per I/O
• Low leakage current of
0.01μA (TYP) at 5V
• AEC-Q101 qualified
• Moisture Sensitivity
Level(MSL -1)
• Halogen-Free, Lead-Free
and RoHS-Compliant
• PPAP capable
Applications
LCD/PDP TVs
• External Storages
• DVD/Blu-ray Players
• Set Top Boxes
• Smartphones
• Ultrabooks/Notebooks
• Digital Cameras
• Portable Medical
• Automotive Electronics
• Wearable Technology
| Product Attribute | Attribute Value |
|---|---|
| Littelfuse | |
| ESD Suppressors / TVS Diodes | |
| RoHS: | Details |
| TVS Diodes | |
| Unidirectional | |
| 6 V | |
| 2 Channel | |
| SMD/SMT | |

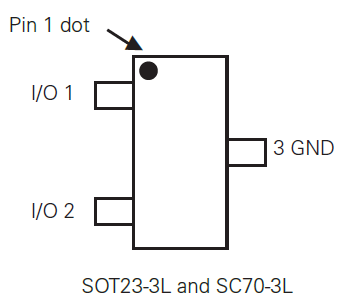

| SOT-23-3 | |
| 6.5 V | |
| 16 V | |
| - | |
| 30 kV | |
| 30 kV | |
| 1 pF | |
| 8 A | |
| - 40 C | |
| + 150 C | |
| AQ3102 | |
| AEC-Q101 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Littelfuse |
| Pd - Power Dissipation: | - |
| 3000 | |
| Subcategory: | TVS Diodes / ESD Suppression Diodes |
| Vf - Forward Voltage: | - |
| Unit Weight: | 0.000310 oz |
