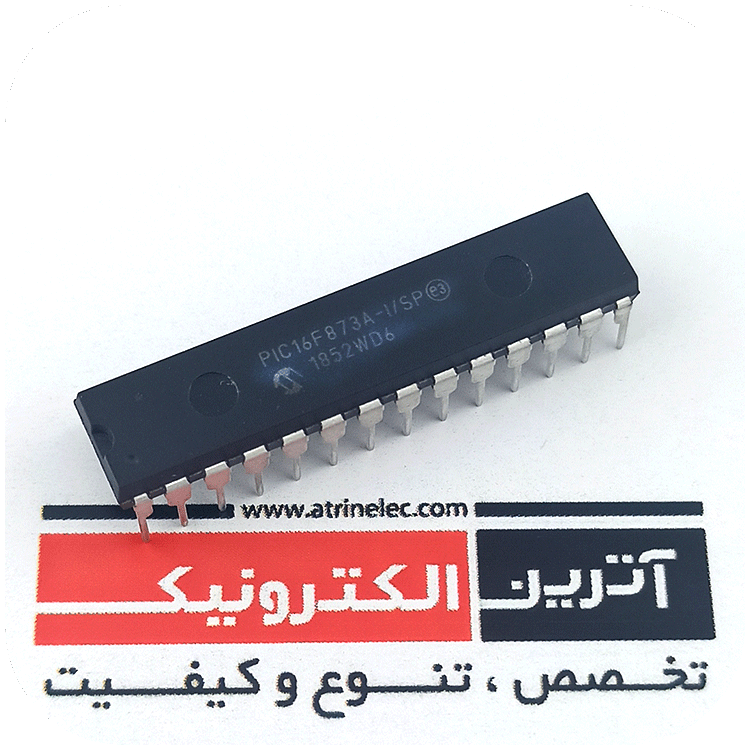

میکروکنترلر 8 بیتی میکروچیپ با فلش 7 کیلو بایت و رم 192 بایت و فرکانس کاری 20 مگاهرتز 28/40/44-Pin Enhanced Flash Microcontrollers
دریافت کتابخانه( ALITUM DESIGNER )
:High-Performance RISC CPU
Only 35 single-word instructions to learn
All single-cycle instructions except for program
branches, which are two-cycle
Operating speed: DC – 20 MHz clock input DC – 200 ns instruction cycle Up to 8K x 14 words of Flash Program Memory,Up to 368 x 8 bytes of Data Memory (RAM),Up to 256 x 8 bytes of EEPROM Data Memory
Pinout compatible to other 28-pin or 40/44-pin
PIC16CXXX and PIC16FXXX microcontrollers
:Peripheral Features
Timer0: 8-bit timer/counter with 8-bit prescaler
Timer1: 16-bit timer/counter with prescaler
can be incremented during Sleep via external
crystal/clock
Timer2: 8-bit timer/counter with 8-bit period
register, prescaler and postscaler
Two Capture, Compare, PWM modules
Capture is 16-bit, max. resolution is 12.5 ns
Compare is 16-bit, max. resolution is 200 ns
PWM max. resolution is 10-bit
Synchronous Serial Port (SSP) with SPI™
(Master mode) and I2C™ (Master/Slave)
Universal Synchronous Asynchronous Receiver
Transmitter (USART/SCI) with 9-bit address
detection
(Parallel Slave Port (PSP) – 8 bits wide with external RD, WR and CS controls (40/44-pin only) Brown-out detection circuitry for Brown-out Reset (BOR
:Analog Features
10-bit, up to 8-channel Analog-to-Digital
(Converter (A/D
(Brown-out Reset (BOR
: Analog Comparator module with
Two analog comparators
Programmable on-chip voltage reference(VREF) module
Programmable input multiplexing from device inputs and internal voltage reference
Comparator outputs are externally accessible
:Special Microcontroller Features
100,000 erase/write cycle Enhanced Flash program memory typical
1,000,000 erase/write cycle Data EEPROM memory typical
Data EEPROM Retention > 40 years
Self-reprogrammable under software control
In-Circuit Serial Programming™ (ICSP™) via two pins
Single-supply 5V In-Circuit Serial Programming
Watchdog Timer (WDT) with its own on-chip RC
oscillator for reliable operation
Programmable code protection
Power saving Sleep mode
Selectable oscillator options
In-Circuit Debug (ICD) via two pins
:CMOS Technology
Low-power, high-speed Flash/EEPROM technology
Fully static design
(Wide operating voltage range (2.0V to 5.5V
Commercial and Industrial temperature ranges
Low-power consumption
