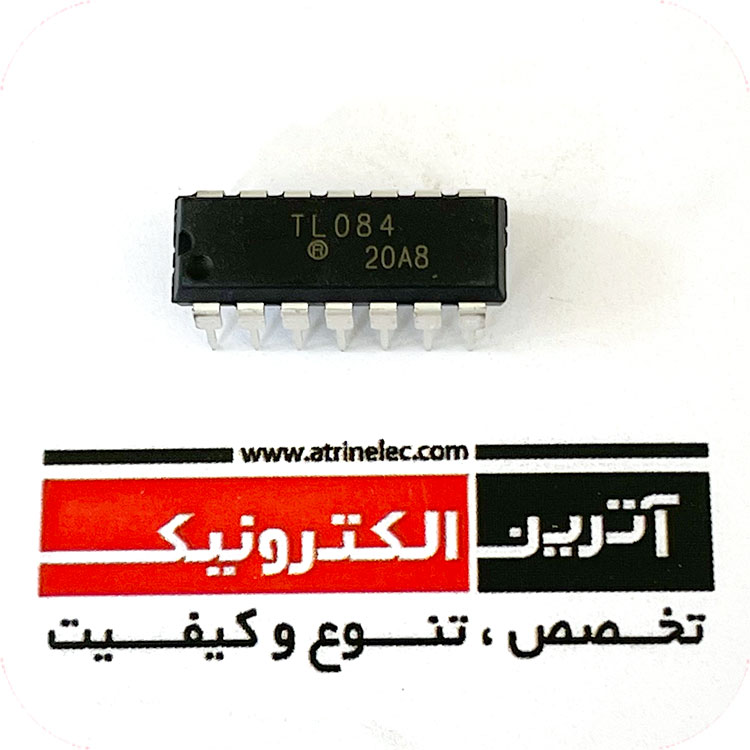

TL084 اورجینال-کیفیت بالا-چیپ تایوان

نقد و بررسی اجمالی

آیسی دوبل تقویت کننده دیپ 14 ای سی تقویت کننده،اپ امپ 2 تایی با پهنای باند 4 مگاهرتز و ولتاژ کاری 18± ولت General purpose JFET quad operational amplifiers,DIP-16

 دریافت دیتا شیت

دریافت  کتابخانه( ALITUM  DESIGNER )

General purpose JFET quad operational amplifiers,DIP-16
آیسی دوبل تقویت کننده دیپ 14
آمپلی فایر دوبل

استفاده در انواع صنایع از جمله  بردهای درایو دستگاه های جوش و برش و اینورتری
مخابراتی
مدارات عمومی
درایورهای دور موتور و .....

Features
¡ Wide common-mode (up to VCC
+) and
differential voltage range
¡ Low input bias and offset current
¡ Output short-circuit protection
¡ High input impedance JFET input stage
¡ Internal frequency compensation
¡ Latch up free operation
¡ High slew rate: 16 V/ƒÊs (typical)

Product Category:	Operational Amplifiers - Op Amps
Manufacturer:	Texas Instruments
RoHS:	Details
Mounting Style:	Through Hole
Package / Case:	PDIP-14
Supply Voltage - Max:	36 V
Number of Channels:	4 Channel
GBP - Gain Bandwidth Product:	3 MHz
SR - Slew Rate:	13 V/us
CMRR - Common Mode Rejection Ratio:	70 dB to 86 dB
Ib - Input Bias Current:	200 pA
Vos - Input Offset Voltage:	6 mV
Supply Voltage - Min:	7 V
Operating Supply Current:	1.4 mA
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 40 C
Shutdown:	No Shutdown
Series:	TL084
Packaging:	Tube
Amplifier Type:	General Purpose Amplifier
Brand:	Texas Instruments
Dual Supply Voltage:	+/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
en - Input Voltage Noise Density:	18 nV/sqrt Hz
Height:	4.57 mm
In - Input Noise Current Density:	0.01 pA/sqrt Hz
Input Type:	Rail-to-Rail
Length:	19.3 mm
Maximum Dual Supply Voltage:	+/- 18 V
Minimum Dual Supply Voltage:	+/- 3.5 V
Operating Supply Voltage:	7 V to 36 V, +/- 3.5 V to +/- 18 V
Product:	Operational Amplifiers
Factory Pack Quantity:	25
Supply Type:	Single, Dual
Technology:	BiFET
Vcm - Common Mode Voltage:	Negative Rail + 4 V to Positive Rail - 4 V
Voltage Gain dB:	106.02 dB
Width:	6.35 mm
Unit Weight:	0.032734 oz

مشخصات بیشتر:
􀀀 Complete PWM Power-Control Circuitry
􀀀 Uncommitted Outputs for 200-mA Sink or
Source Current
􀀀 Output Control Selects Single-Ended or
Push-Pull Operation
􀀀 Internal Circuitry Prohibits Double Pulse at
Either Output
􀀀 Variable Dead Time Provides Control Over
Total Range
􀀀 Internal Regulator Provides a Stable 5-V
Reference Supply With 5% Tolerance
􀀀 Circuit Architecture Allows Easy
Synchronization
دیاگرام:
