ATMEGA16A-AU اورجینال - ساخت تایوان

نقد و بررسی اجمالی

میکروکنترلر 8 بیت اتمل با فلش 16 کیلو بایت و فرکانس 16 مگاهرتز- اس ام دی

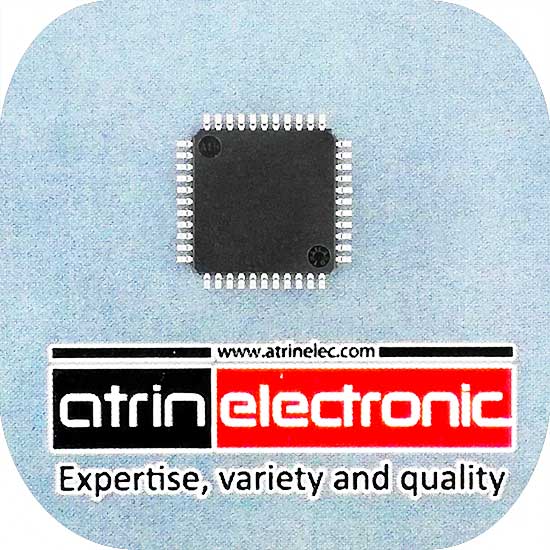

ATMEGA16A-AU

میکروکنترلر 8 بیت اتمل
8Bit Microcontroller with 16K Bytes In-System
Programmable Flash
TQFP-44 ,ATMEL
میکروکنترلر اتمل

اس ام دی 40

 دریافت دیتا شیت

دریافت  کتابخانه( ALITUM  DESIGNER )

مشخصات بیشتر:

Features
High-performance, Low-power Atmel AVR 8-bit Microcontroller

Advanced RISC Architecture
131 Powerful Instructions – Most Single-clock Cycle Execution
32 x 8 General Purpose Working Registers
Fully Static Operation
Up to 16MIPS Throughput at 16MHz
On-chip 2-cycle Multiplier
High Endurance Non-volatile Memory segments
16KBytes of In-System Self-programmable Flash program memory
512Bytes EEPROM
1KByte Internal SRAM
Write/Erase Cycles: 10,000 Flash/100,000 EEPROM
Data retention: 20 years at 85°C/100 years at 25°C
Optional Boot Code Section with Independent Lock Bits
 In-System Programming by On-chip Boot Program
 True Read-While-Write Operation
Programming Lock for Software Security
JTAG (IEEE std. 1149.1 Compliant) Interface
Boundary-scan Capabilities According to the JTAG Standard
Extensive On-chip Debug Support

̶Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG
Interface
Peripheral Features
Two 8-bit Timer/Counters with Separate Prescalers and Compare Modes
One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and
Capture Mode
Real Time Counter with Separate Oscillator
Four PWM Channels
8-channel, 10-bit ADC
 8Single-ended Channels
 7Differential Channels in TQFP Package Only
2Differential Channels with Programmable Gain at 1x, 10x, or 200x
Byte-oriented Two-wire Serial Interface
Programmable Serial USART
Master/Slave SPI Serial Interface

Programmable Watchdog Timer with Separate On-chip Oscillator
On-chip Analog Comparator
ATmega16A
8-bit Microcontroller with 16K Bytes In-System
Programmable Flash
DATASHEET
ATmega16A [DATASHEET] 2
Atmel-8154C-8-bit-AVR-ATmega16A_Datasheet-07/2014
Special Microcontroller Features
Power-on Reset and Programmable Brown-out Detection
Internal Calibrated RC Oscillator
External and Internal Interrupt Sources
Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby and Extended Standby
 I/O and Packages
32 Programmable I/O Lines
40-pin PDIP, 44-lead TQFP, and 44-pad QFN/MLF
 Operating Voltages
2.7 - 5.5V
 Speed Grades
0 - 16MHz
 Power Consumption @ 1MHz, 3V, and 25°C
Active: 0.6mA
Idle Mode: 0.2mA
Power-down Mode: < 1μA
