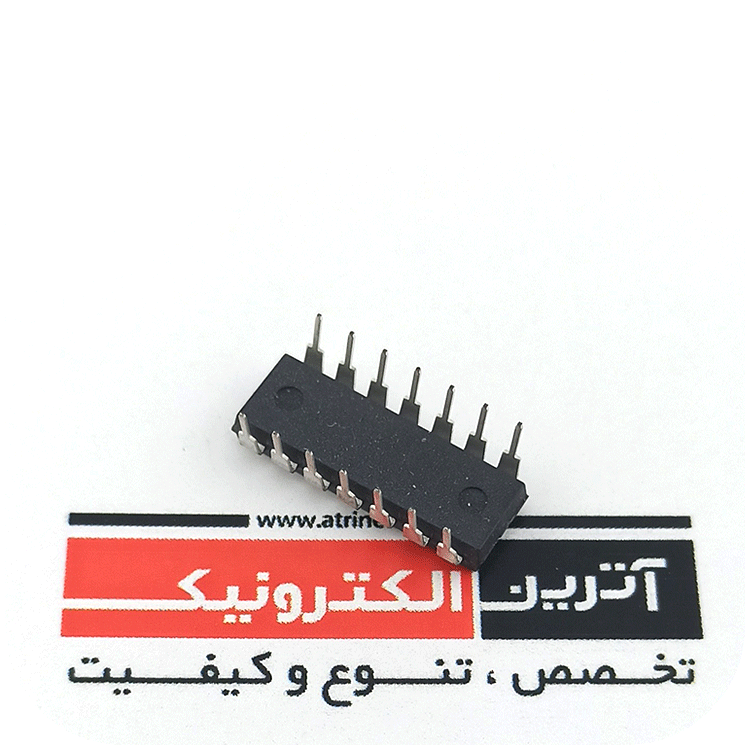

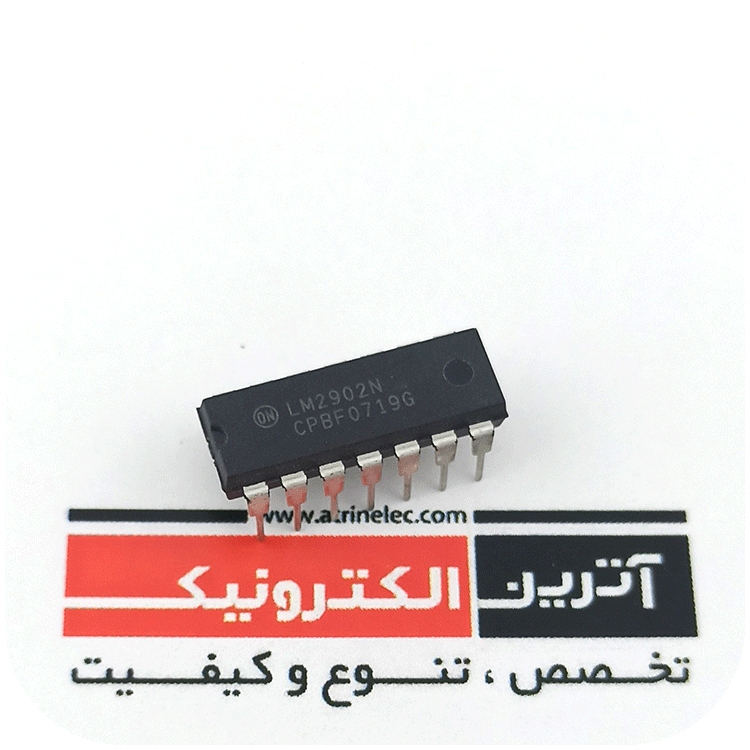

ای سی اپ امپ تقویت کننده عملیاتی 4 تایی با پهنای باند 1.3 مگاهرتز و ولتاژ کاری 16± ولت LOW POWER QUAD OPERATIONAL AMPLIFIERS
WIDE GAIN BANDWIDTH : 1.3MHz
INPUT COMMON-MODE VOLTAGE RANGE
INCLUDES GROUND
LARGE VOLTAGE GAIN : 100dB
VERY LOW SUPPLY CURRENT/AMPLI : 375µA
LOW INPUT BIAS CURRENT : 20nA
LOW INPUT OFFSET CURRENT : 2nA
WIDE POWER SUPPLY RANGE
SINGLE SUPPLY : +3V TO +30V
DUAL SUPPLIES : ±1.5V TO ±15V
DESCRIPTION

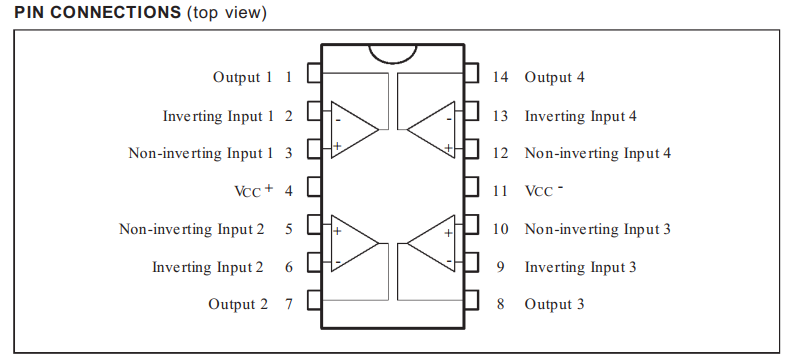

This circuit consists of four independent, high gain,
internally frequency compensated operational amplifiers which were designedspecifically for automotive and industrial control systems. It operates from
a single power supply over a wide range of voltages. Operation from split power supplies is also
possible and the low power supply current drain is
independentof the magnitude of the power supply
voltage
