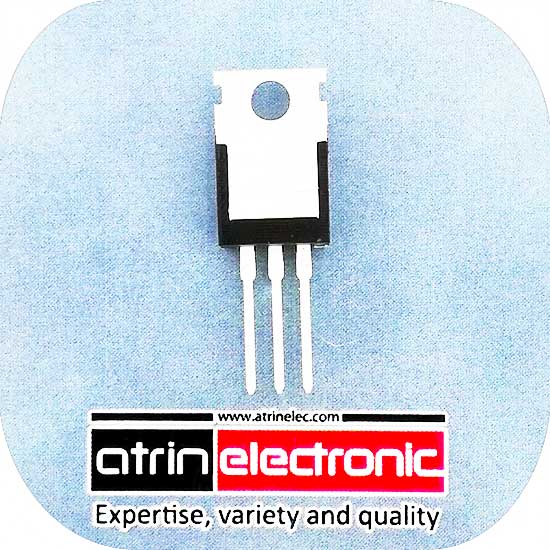

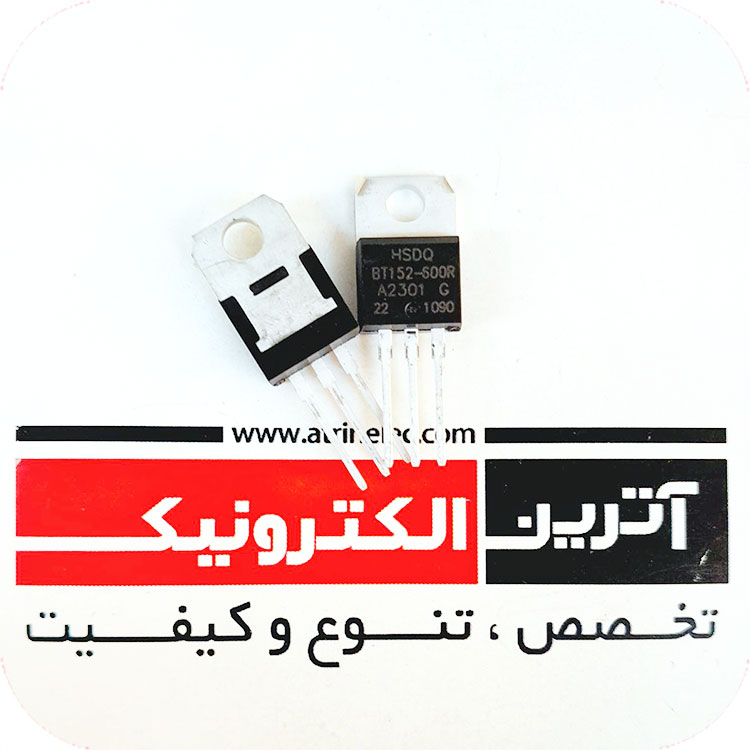

تریستور 13 آمپر 600 ولت 13A ,600V, Thyristors,TO220AB
استفاده درانواع صنایع از جمله لامپ های کم مصرف - درایورهای موتور
اینورتر و مصارف عمومی
GENERAL DESCRIPTION
Glasspassivated thyristors ina plastic
envelope, intended for use in
applications requiring high
bidirectional blocking voltage
capability and high thermal cycling
performance. Typical applications
include motor control, industrial and
domestic lighting, heating and static
switching.
مشخصات:
مشخصات - پارامترها |
مقادیر |
خانواده |
المان قطع ووصل جریان وولتاژ |
سری |
تریستور Thyristors |
تعداد پین |
3 |
پکیج |
TO220AB |
ولتاژ کاری |
600V |
جریان کاری |
13A |
VDRM |
600V |
VDSM |
- |
VRRM |
- |
VRSM |
- |
(IT(RMS |
20A |
(IT(AV |
- |
(ITSM-IT(SM |
200A |
VGT |
1.5V |
IGT |
50-100mA |
ابعاد |
15.8x10.3x4.5mm |
دمای کاری |
125+~40- |
برند |
- |
کشور سازنده |
- |
کیفیت |
اورجینال |
نوع مونتاژ |
DIP |
ویژگی خاص |
- |
