ترانسدیوسر(سنسور جریان اثر هال) 100 آمپر AC/DC Current Transducers ساخت لم سوییس(امریکا) Hall-Effect Current Sensor Series
ترانسدیوسر(سنسور جریان اثر هال) 100 آمپر AC/DC
Current Transducers
ساخت لم سوییس(امریکا)

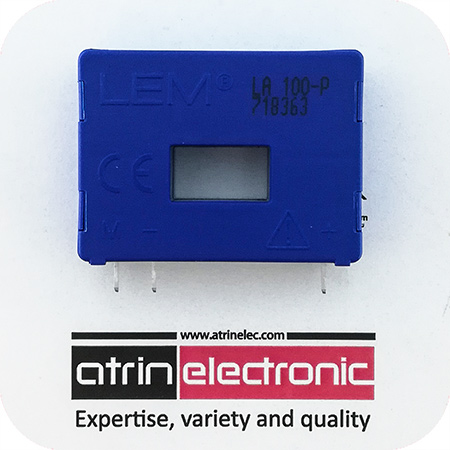

Current Transducer LA 100-P
For the electronic measurement of currents : DC, AC, pulsed...,
with a galvanic isolation between the primary circuit (high power)
and the secondary circuit (electronic circuit).
ترانسدیوسر Transducers
بسیار با دوام و با کیفیت
طول عمر بالا
انواع اینورترهای دور و جریان
انواع محافظ های تابلو برق
انواع دستگاه های جوش و برش اینورتری
انواع نمایشگرهای جریان
مصارف عمومی
مخابراتی
نظامی و غیره ...
Features
·Closed loop (compensated) current
transducer using the Hall effect
·Printed circuit board mounting
·Insulated plastic case recognized
according to UL 94-V0.
Advantages
·Excellent accuracy
·Very good linearity
·Low temperature drift
·Optimized response time
·Wide frequency bandwidth
·No insertion losses
·High immunity to external
interference
·Current overload capability.
Applications
·AC variable speed drives and servo
motor drives
·Static converters for DC motor drives
·Battery supplied applications
·Uninterruptible Power Supplies
(UPS)
·Switched Mode Power Supplies
(SMPS)
·Power supplies for welding
applications.
