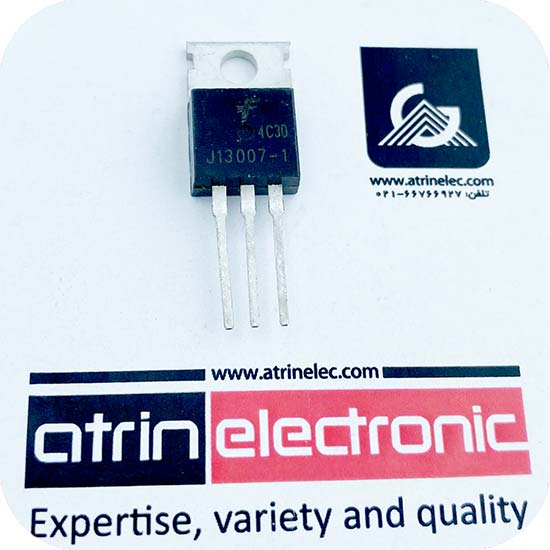

ترانزیستور NPN ولتاژ400 ولت 8 آمپر 80 وات NPN SILICON POWER TRANSISTOR 400V,8A,80W TO-220
ترانزیستور NPN ولتاژ400 ولت 8 آمپر 80 وات
مشخصات:
مشخصات - پارامترها |
مقادیر |
خانواده |
ترانزیستور |
سری ترانزیستور |
NPN Transistor |
تعداد پین |
3 |
پکیج |
TO-220 |
ولتاژکاری |
400V |
جریان کاری |
8A |
VCBO |
700V |
VCEO |
400V |
VEBO |
9V |
IC |
8A |
ICM-ICPULSE |
16A |
IB |
4A |
IBM |
8A |
VCE(sat) |
3V |
VBE(on)-VBE(sat) |
1.6V |
hFE(min) |
5 |
hFE(max) |
30 |
ptot-PD |
80W |
FT |
4-14MHZ |
ابعاد |
mm |
دمای کاری |
125+~65- |
برند |
ON SEMI |
کشور سازنده |
چین |
کیفیت |
بالا |
نوع مونتاژ | DIP |
ویژگی خاص | - |
NPN SILICON POWER TRANSISTOR 400V,8A,80W TO-220
UNISONIC TECHNOLOGIES CO., LTD
ON SEMICONDUCTOR
SWITCHMODE Series
NPN Silicon Power
Transistors
These devices are designed for high−voltage, high−speed power
switching inductive circuits where fall time is critical. They are
particularly suited for 115 and 220 V SWITCHMODE applications
such as Switching Regulator’s, Inverters, Motor Controls,
Solenoid/Relay drivers and Deflection circuits.
8AMPERE
NPN SILICON
POWER TRANSISTOR
400VOLTS − 80 WATTS
Switch-mode NPN Bipolar
Power Transistor
For Switching Power Supply Applications
The MJE13007 is designed for high−voltage, high−speed power
switching inductive circuits where fall time is critical. It is particularly
suited for 115 and 220 V switch−mode applications such as Switching
Regulators, Inverters, Motor Controls, Solenoid/Relay drivers and
Deflection circuits.
Features
• SOA and Switching Applications Information
• Standard TO−220
• These Devices are Pb−Free and are RoHS Compliant*
• Complementary to the MJE5850 through MJE5852 Series
