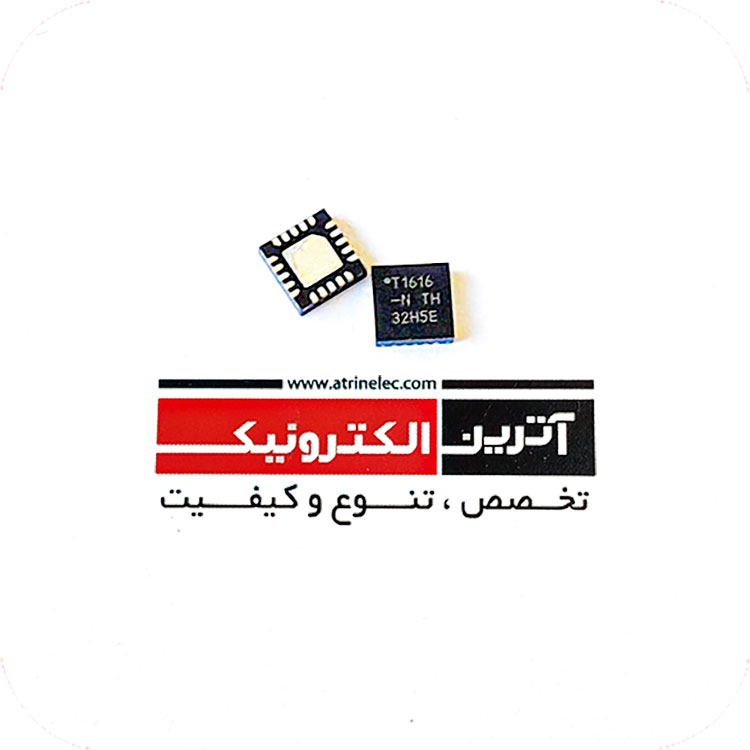

میکروکنترلر 8 بیتی20 مگاهرتز حافظه 16 کیلو بایت پکیج QFN-20 8bit Microcontrollers - MCU 20MHZ QFN 85C GRN
The ATtiny1616 is a microcontroller featuring the 8-bit AVR® processor with a hardware multiplier, running at up to 20 MHz, and with 16 KB Flash, 2 KB SRAM, and 128B of EEPROM in a 20-pin package. The series uses the latest Core Independent Peripherals with low-power features, including Event System, intelligent analog and advanced peripherals. The integrated QTouch® peripheral touch controller supports capacitive touch interfaces with proximity sensing and a driven shield.
Functional Safety| Program Memory Size (KB) | 16 |
| RAM | 2048 |
| Data EEPROM (bytes) | 256 |
| Pin Count | 20 |
| Operation Voltage Max.(V) | 5.5 |
| Operation Voltage Min.(V) | 1.8 |
| ADC Resolution Max | 10 |
| ADC Channels | 16 |
| Zero Cross Detect | False |
| Number of Comparators | 3 |
| SPI | 1 |
| I2C | 1 |
| Stand alone PWM | 4 |
| Low Power | Yes |
| Numerically Controlled Oscillator (NCO) | 0 |
| Data Signal Modulator (DSM) | 0 |
