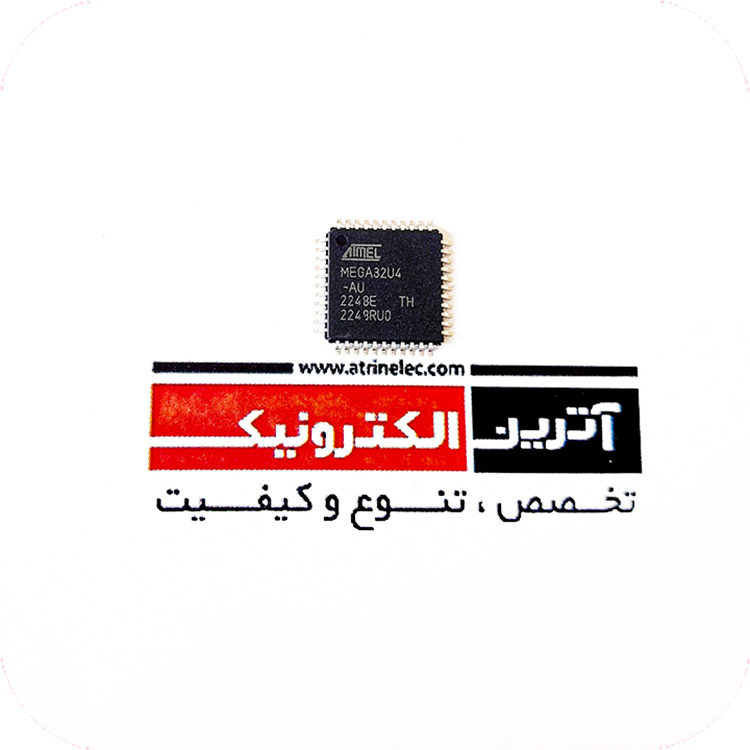

ATMEGA32U4-AU اریجینال-کیفیت بالا

ATMEGA32U4-AU

میکروکنترلر 8 بیتی16 مگاهرتز حافظه 32 کیلو بایت پکیج 44-TQFP AVR AVR® ATmega Microcontroller IC 8-Bit 16MHz 32KB (16K x 16) FLASH 44-TQFP (10x10)

تعداد

تخفیف

قیمت

328,300 تومان

+10

0.5 %

326,800 تومان

+50

0.9 %

325,300 تومان

برند: MICROCHIP پکیج: 44-TQFP وزن: 1.0g

دسته بندی اصلی: الکترونیک

گروه فرعی: انواع آیسی میکروکنترلر و پرسسور SMD تمام آیسی ها خانواده AVR تمام میکروکنترلر و پرسسورها

نقد و بررسی اجمالی

میکروکنترلر 8 بیتی16 مگاهرتز حافظه 32 کیلو بایت پکیج 44-TQFP AVR AVR® ATmega Microcontroller IC 8-Bit 16MHz 32KB (16K x 16) FLASH 44-TQFP (10x10)

The low-power Microchip 8-bit AVR® RISC-based microcontroller featuring 32 KB self-programming Flash program memory, 2.5 KB SRAM, 1 KB EEPROM, USB 2.0 full-speed/low-speed device, 12-channel 10-bit A/D-converter, and JTAG interface for on-chip-debug. The device achieves up to 16 MIPS throughput at 16 MHz. 2.7-5.5 volt operation.

By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching one MIPS per MHz, allowing you to optimize power

consumption versus processing speed.

Product Features

Complies fully with Universal Serial Bus Specification Rev. 2.0
Supports data transfer rates up to 12 Mbit/s and 1.5 Mbit/s
Endpoint 0 for Control Transfers: Up to 64 bytes
Six Programmable Endpoints with In or Out Directions and with Bulk, Interrupt or Isochronous Transfers
Configurable Endpoints size up to 256 bytes in double bank mode
Fully independent 832 bytes USB DPRAM for endpoint memory allocation
Suspend/Resume Interrupts
CPU Reset possible on USB Bus Reset detection
48 MHz from PLL for Full-Speed Bus Operation
USB Bus Connection/Disconnection on Microcontroller Request
Crystal-less operation for Low-Speed mode

Parametrics

Program Memory Size (KB)	32
RAM	2560
Data EEPROM (bytes)	1024
Pin Count	44
Operation Voltage Max.(V)	5.5
Operation Voltage Min.(V)	2.7
ADC Resolution Max	10
ADC Channels	12
Zero Cross Detect	False
Number of Comparators	1
SPI	2
I2C	1
Stand alone PWM	8
Low Power	No
Numerically Controlled Oscillator (NCO)	0
Data Signal Modulator (DSM)	0
