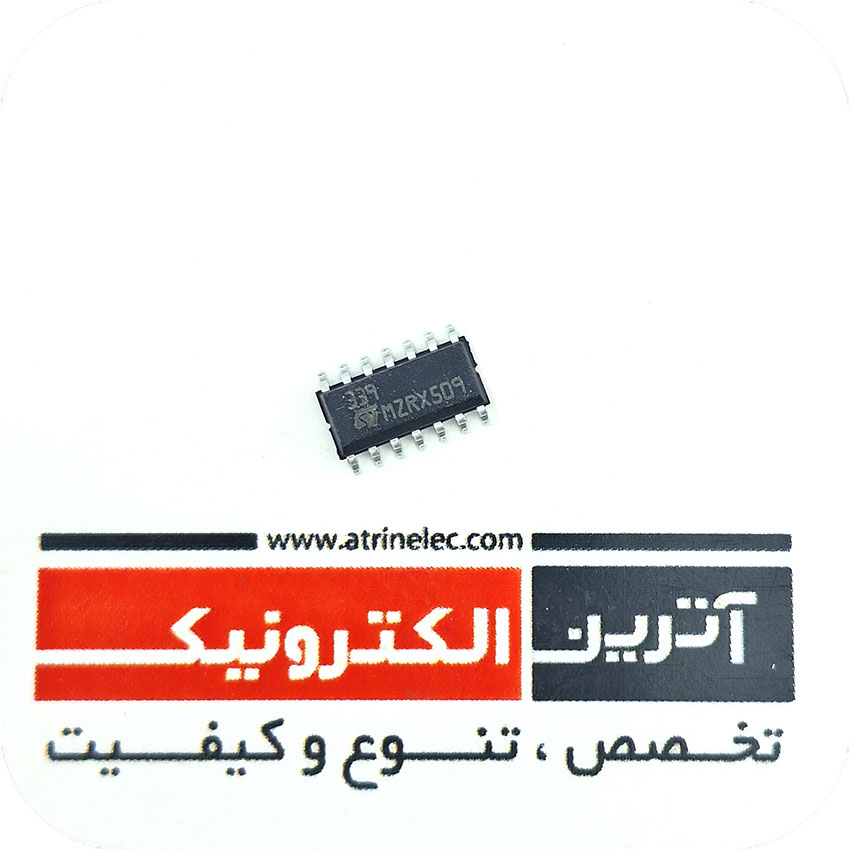

LM339 smd اورجینال

نقد و بررسی اجمالی

آیسی 4 مقایسه کننده ای سی قایسه کننده 4 تایی با ولتاژ کاری 36 ولت Low Power Low Offset Voltage Quad Comparators SOP-14

 دریافت دیتا شیت

دریافت  کتابخانه( ALITUM  DESIGNER )

Quad Operational Amplifier,DIP-16
آیسی آمپلی فایر(تقویت کننده) با 4 تقویت کننده اریجینال تگزاز


استفاده در انواع صنایع از جمله  بردهای درایو دستگاه های جوش و برش و اینورتری
مخابراتی
مدارات عمومی
درایورهای دور موتور و .....

مشخصات بیشتر:
General Description
The LM139 series consists of four independent precision
voltage comparators with an offset voltage specification as
low as 2 mV max for all four comparators. These were designed
specifically to operate from a single power supply
over a wide range of voltages. Operation from split power
supplies is also possible and the low power supply current
drain is independent of the magnitude of the power supply
voltage. These comparators also have a unique characteristic
in that the input common-mode voltage range includes
ground, even though operated from a single power supply
voltage.
Application areas include limit comparators, simple analog
to digital converters; pulse, squarewave and time delay generators;
wide range VCO; MOS clock timers; multivibrators
and high voltage digital logic gates. The LM139 series was
designed to directly interface with TTL and CMOS. When
operated from both plus and minus power supplies, they will
directly interface with MOS logicÐ where the low power
drain of the LM339 is a distinct advantage over standard
comparators.
Advantages
Y High precision comparators
Y Reduced VOS drift over temperature
Y Eliminates need for dual supplies
Y Allows sensing near GND
Y Compatible with all forms of logic
Y Power drain suitable for battery operation
Features
Y Wide supply voltage range
LM139 series, 2 VDC to 36 VDC or
g1 VDC to g18 VDC
LM139A series, LM2901 2 VDC to 28 VDC
LM3302 or g1 VDC to g14 VDC
Y Very low supply current drain (0.8 mA) Ð independent
of supply voltage
Y Low input biasing current 25 nA
Y Low input offset current g5 nA
and offset voltage g3 mV
Y Input common-mode voltage range includes GND
Y Differential input voltage range equal to the power
supply voltage
Y Low output saturation voltage 250 mV at 4 mA
Y Output voltage compatible with TTL, DTL, ECL, MOS
and CMOS logic systems
