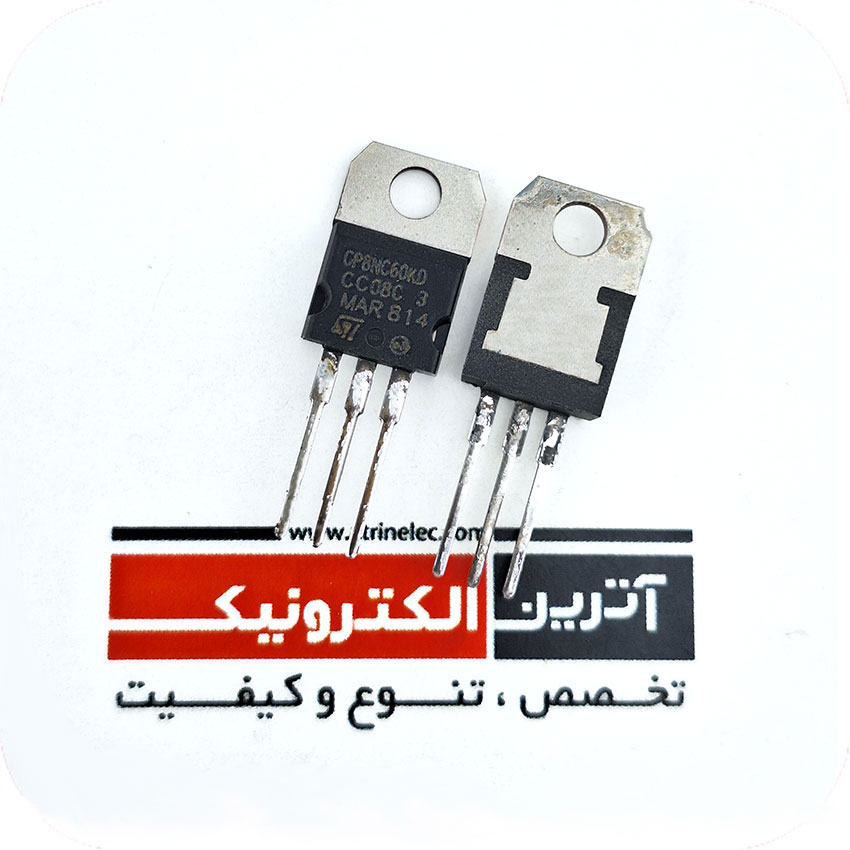

ای جی بی تی 600 ولت 8 آمپر 8A, 600V short-circuit rugged IGBT
|
Category
|
Input Type
Standard
|
|
Manufacturer
STMicroelectronics
|
Gate Charge
19 nC
|
|
Series
|
Td (on/off) @ 25°C
17ns/72ns
|
|
Packaging
Tube
|
Test Condition
390V, 3A, 10Ohm, 15V
|
|
Part Status
Active
|
Reverse Recovery Time (trr)
23.5 ns
|
|
Voltage - Collector Emitter Breakdown (Max)
600 V
|
Operating Temperature
-55°C ~ 150°C (TJ)
|
|
Current - Collector (Ic) (Max)
15 A
|
Mounting Type
Through Hole
|
|
Current - Collector Pulsed (Icm)
30 A
|
Package / Case
TO-220-3
|
|
Vce(on) (Max) @ Vge, Ic
2.75V @ 15V, 3A
|
Supplier Device Package
TO-220
|
|
Power - Max
65 W
|
Base Product Number
|
|
Switching Energy
55µJ (on), 85µJ (off)
|
