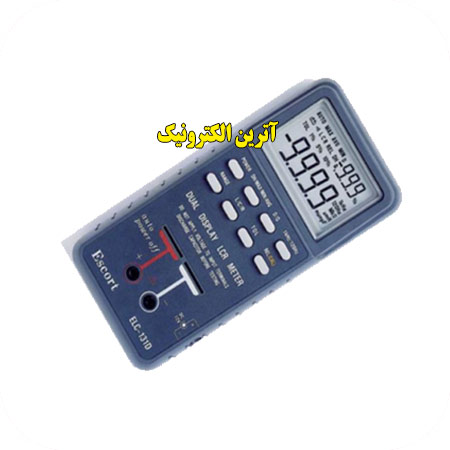

ELC-131D اریجینال ESCORT

نقد و بررسی اجمالی

Escort 10000 Count Dual Display Digital LCR Meter, 1kHz LCR متر اسکورت بسیار کم حجم و دقیق اسکورت صنعتی و اتوماتیک

•  دریافت دیتا شیت

• مشخصات و توضیحات بیشتر:

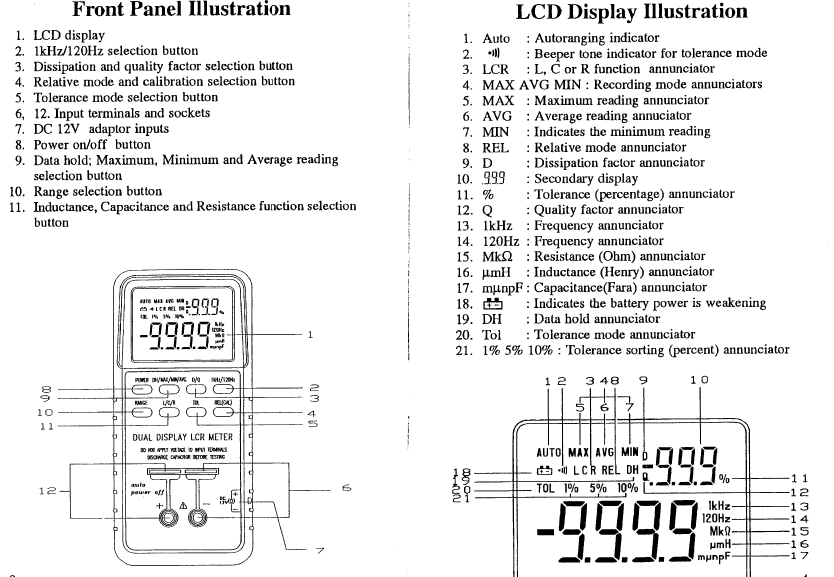

• Large LCD with Dual Display
• Resolution: 10,000 Count for L, C, R and 1,000 Count for D, Q
• Measurement Parameters: R, L, C, D, and Q
• Selectable Test Frequency: 120Hz / 1kHz
• Measurement Ranges: L: 1mH to 10,000H; C: 1,000pF to 10mF; R: 10W to 10MW 　　　　　　　　 Q: .000 to 999 Auto; D: .000 to 999 Auto
• Parallel and Serial Test Mode
• Auto and Manual Ranging
• 0.5% Basic Accuracy for Resistance Measurement
• 0.7% Basic Accuracy for Capacitance and Inductance Measurement
• Tolerance Mode: 1%, 5%, and 10%
• Max / Min / Avg Dynamic Recording
• Relative Mode for Reading Correlation and Comparison Applications
• Auto Protective Fuse Check
• Self-Calibration for Calibrating the Meter's Internal Parameters as well as External Connector Residuals
• Powered by Battery or External AC/DC Adapter
• Auto Power Off
• Low Battery Indicator
• CE Mark
