نقد و بررسی اجمالی

Fluke 179 True RMS Digital Multimeter مولتیمتر صنعتی10 آمپر و 1000 ولت ac/dc فلوک بسیار کم حجم و دقیق فلوک -فلویک

•  دریافت دیتا شیت
• توضیح مختصر :

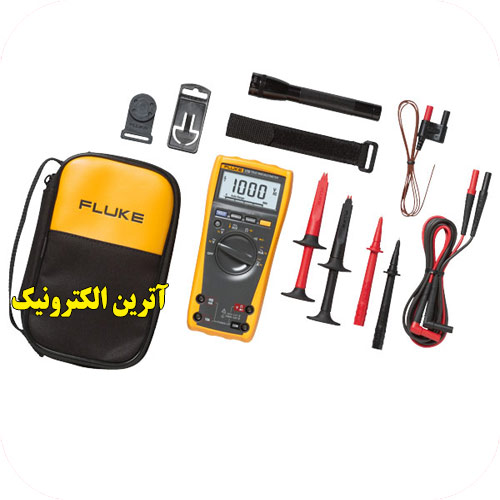

• Fluke 179 True RMS Digital Multimeter

  The Fluke 179 True RMS Digital Multimeter is the industry standard for troubleshooting and repair of electrical and electronic systems

•
  مشخصات فنی :

• Manual and automatic ranging
• Display Hold and Auto Hold
• Frequency and capacitance measurements
• Resistance, continuity and diode measurements
• Temperature measurements (179)
• Min-max-average recording
• Closed case calibration through front panel
• Ergonomic case with integrated protective holster

Safety conformance

All inputs are protected to IEN61010-1 CAT IV 600 V/CAT III 1000 V., CSA, and TÜV listed

• Specifications
  Voltage DC	Accuracy1	±(0.09% + 2)
  	Max. resolution	0.1 mV
  	Maximum	1000 V
  Voltage AC	Accuracy1	±(1.0% + 3)
  	Max. resolution	0.1 mV
  	Maximum	1000 V
  Current DC	Accuracy1	±(1.0% + 3)
  	Max. resolution	0.01 mA
  	Maximum	10 A
  Current AC	Accuracy1	±(1.5% + 3)
  	Max. resolution	0.01 mA
  	Maximum	10 A
  Resistance	Accuracy1	±(0.9% + 1)
  	Max. resolution	0.1 Ω
  	Maximum	50 MΩ
  Capacitance	Accuracy1	±(1.2% + 2)
  	Max. resolution	1 nF
  	Maximum	10,000 µF
  Frequency	Accuracy1	±(0.1% + 1)
  	Max. resolution	0.01 Hz
  	Maximum	100 kHz
  Temperature	Accuracy1	±(1.0% + 10)
  	Max. resolution	0.1°C
  	Range	-40°C / 400°C
  1. Accuracies are best accuracies for each function
  Environmental Specifications
  Operating temperature	-10°C to +50°C
  Storage temperature	-30°C to +60°C
  Humidity (without condensation)	0% – 90% (0°C – 35°C) 0% – 70% (35°C – 50°C)
  Safety Specifications
  Overvoltage category	EN 61010–1 to 1000 V CAT III EN 61010–1 to 600 V CAT IV
  Agency approvals	UL, CSA, TÜV listed and VDE Pending
  Mechanical and General Specifications
  Size	43 x 90 x 185 mm
  Weight	420 g
  Warranty	Lifetime
  Battery life	Alkaline ~200 hours typical, without backlight
