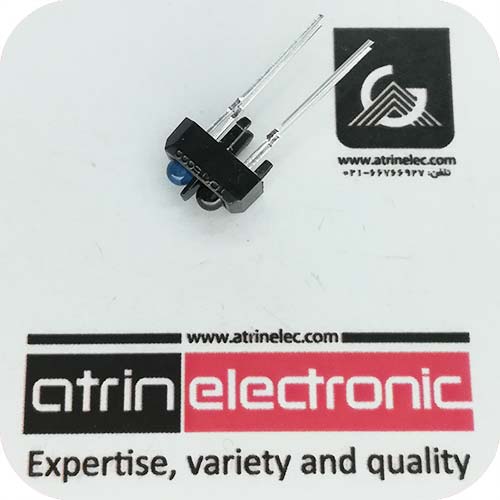

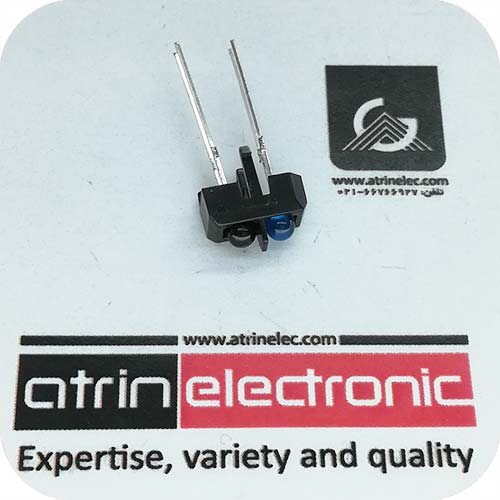

سنسور مادونه قرمز TCRT5000L اورجینال

نقد و بررسی اجمالی

سنسور گیرنده و فرستنده مادونه قرمز

دریافت دیتا شیت

Product Description:

The TCRT5000L are reflective sensors which include an infrared emitter and phototransistor in a leaded package which blocks visible light. The package includes two mounting clips. TCRT5000L is the long lead version.

Technical Specifications:

Sensing Distance: 0.2 mm 15 mm
Operating Wavelength: 950 mm
Package Height: 7 mm
Sensing Method: Reflective
Reverse Voltage: 5V
Forward Current: 60mA
Forward Surge Current: 3A
Emitter Power Dissipation: 100mW
Collector Emitter Voltage: 70V
Emitter Collector Voltage: 5V
Collector Current: 100mA
Detector Power Dissipation: 100mW
Sensor Total Power Dissipation: 200mW
Operating Temperature: -25°C ~ +85°C

Applications:
Sensor for Line Follower Robots
Position sensor for shaft encoder
Detection of reflective material such as paper, IBM cards, magnetic tapes etc.
Limit switch for mechanical motions in VCR
General purpose – wherever the space is limited
